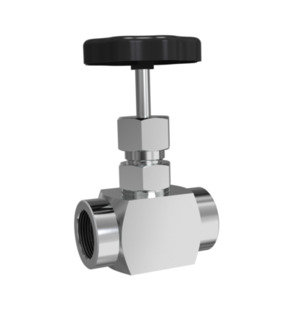

Needle valve Series 110VA; Body Stainless steel 1.4571; Stem seal PTFE; Medium temperature -50...+60°C; Free of oil and grease for oxygen; G 3/8"; DN 6mm; Pressure range 0-400bar; Length 55mm; Material handwheel Polyamid
Intrastat No.: 84818073
Country of origin: Germany
Weight: 0.11 Kg
Short Itemnumber: 110VA38S
Country of origin: Germany
Weight: 0.11 Kg
Short Itemnumber: 110VA38S
needle valve series 110VA; body stainless steel AISI 316Ti; stem seal PTFE; medium temperature -50...+60°C; free of oil and grease for oxygen; G 3/8"; DN 6mm; pressure range 0-400bar; length 55mm; material handwheel Polyamid
Technical specifications
| Pressure range | 0...400 bar |
|---|---|
| Female thread | G 3/8" |
| DN | 6 mm |
| Length | 55 mm |
| Pressure range | 0...400 bar |
| Female thread | G 3/8" |
| DN | 6 mm |
| Length | 55 mm |
| Material handwheel | Polyamide |
No spare parts are available for this product.
