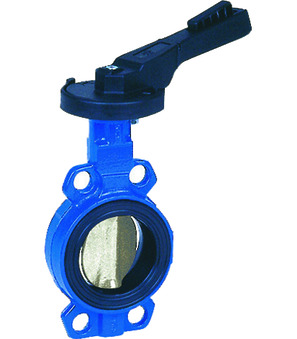

Butterfly valve Series Sylax; Wafer type; According to ISO 5752; Body Cast iron EN-GJL-250 Epoxy coated; Disc 1.4408; Shaft 1.4028; Liner EPDM; Nominal flange pressure PN6/10/16; Medium temperature -10...+110 °C; DN 32;40mm; Length 32mm; Pressure range 0-16bar
Country of origin: France
Weight: 2.05 Kg
Short Itemnumber: 149G011255
Butterfly valve Series Sylax; Wafer type; According to ISO 5752; Body Cast iron EN-GJL-250 Epoxy coated; Disc AISI 316; Shaft AISI 420; Liner EPDM; Nominal flange pressure PN6/10/16; Medium temperature -10...+110 °C; DN 32;40mm; Length 32mm; Pressure range 0-16bar
Technical specifications
| Pressure range | 0-16bar |
|---|---|
| Brand | STASTO |
| Pressure range | 0-16bar |
| Brand | STASTO |
149G011255
Documents
Language-independent
CAD / 3D
1-
ZIP
CADSTEP · 149G011255
CAD-STEP 1,7 MB Updated 27/09/2026
