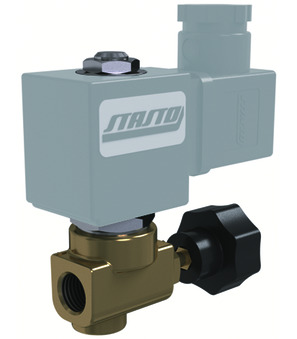

21A16KV25-BDV08230AY-C003-32-LV-1

21A16KV25-BDV08230AY-C003-32-LV-1

21A16KV25
2/2-way solenoid valve Series 21A16; Directly operated; NC; Body Brass; Tube Stainless steel One-piece; Flow control; Standard coil BDV; Connector size 32mm; G 1/4"; DN 2,5mm; Pressure AC 0-14bar; Pressure DC 0-9bar; Seal FKM; Medium -10/+140°C; Length 32,5mm
BDV08230AY
Coil Type BDV; For humid area; Approval CSA/UL/VDE; Connector size 32mm; Voltage 230V/50Hz, 240V/60Hz
C003-32-LV-1
Connector; Connector size 32mm; With integrated LED-yellow and VDR; Voltage 230VAC/DC

2/2-Wege-Magnetventil Serie 21A16
Intrastat No.: 84818099
Country of origin: Italy
Weight: 0.35 Kg
Short Itemnumber: 21A16KV25BDV08230AYC00332LV1
https://www.stasto.hu/web/image/product.template/184235/image_1920?unique=5a4e198

BDV08230AY
coil type BDV; for humid area; approval CSA/UL/VDE; connector size 32mm; voltage 230V/50Hz, 240V/60Hz
C003-32-LV-1
connector; connector size 32mm; with integrated LED-yellow and VDR; voltage 230VAC/DC

92,80 € 92.8 EUR 92,80 €

ár kérésre

excl. tax
  • Female thread
  • DN
  • Length
  • Connector size
  • Design
  • Voltage
  • Voltage type
  • Pressure AC
  • Pressure DC
  • Seal
  • Coil
  • Medium temperature
  • Approval

This combination does not exist.

Availability:
See availability
Contact Us

Technical specifications

Female thread G 1/4"
DN 2,5 mm
Length 32,5 mm
Pressure AC 0...14 bar
All specifications (11)
Documents
Data sheets, drawings and CAD files
Female thread G 1/4"
DN 2,5 mm
Length 32,5 mm
Pressure AC 0...14 bar
Pressure DC 0...9 bar
Seal FKM
Medium temperature -10...+140 °C
Voltage 230V/50Hz-240V/60Hz
Design With integrated LED-yellow and VDR
Voltage type AC
Approval UL/CSA/VDE

21A16KV25-BDV08230AY-C003-32-LV-1

Documents

4 Documents 18 Languages

Czech / Čeština
ZIP

Data Sheets

1

Assembly and Operating Instructions

1

Declarations of Conformity

1

CAD / 3D

1
Danish / Dansk
ZIP

Data Sheets

1

CAD / 3D

1
German / Deutsch
ZIP

Data Sheets

1

Assembly and Operating Instructions

1

Declarations of Conformity

1

CAD / 3D

1
Greek / Ελληνικά
ZIP

Data Sheets

1

CAD / 3D

1
English
ZIP

Data Sheets

1

Assembly and Operating Instructions

1

Declarations of Conformity

1

CAD / 3D

1
Spanish / Español
ZIP

Data Sheets

1

CAD / 3D

1
Finnish / Suomi
ZIP

Data Sheets

1

CAD / 3D

1
French / Français
ZIP

Data Sheets

1

CAD / 3D

1
Croatian / hrvatski jezik
ZIP

Data Sheets

1

CAD / 3D

1
Hungarian / Magyar
ZIP

Data Sheets

1

Assembly and Operating Instructions

1

Declarations of Conformity

1

CAD / 3D

1
Italian / Italiano
ZIP

Data Sheets

1

CAD / 3D

1
Norwegian Bokmål / Norsk bokmål
ZIP

Data Sheets

1

CAD / 3D

1
Dutch / Nederlands
ZIP

Data Sheets

1

CAD / 3D

1
Polish / Język polski
ZIP

Data Sheets

1

Assembly and Operating Instructions

1

Declarations of Conformity

1

CAD / 3D

1
Romanian / română
ZIP

Data Sheets

1

CAD / 3D

1
Slovenian / slovenščina
ZIP

Data Sheets

1

Assembly and Operating Instructions

1

Declarations of Conformity

1

CAD / 3D

1
Serbian (Latin) / srpski
ZIP

Data Sheets

1

Assembly and Operating Instructions

1

Declarations of Conformity

1

CAD / 3D

1
Swedish / Svenska
ZIP

Data Sheets

1

CAD / 3D

1
No spare parts are available for this product.
