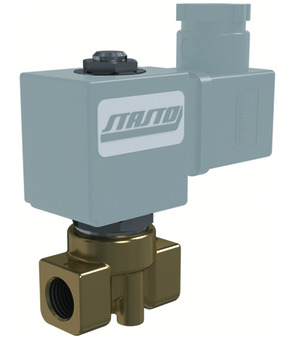

2/2-way solenoid valve 21A2KV25-BDA08012CS-C003-32-6

2/2-way solenoid valve 21A2KV25-BDA08012CS-C003-32-6

21A2KV25
2/2-way solenoid valve Series 21A; Directly operated; NC; Body Brass; Tube Stainless steel One-piece; Seal FKM; Medium temperature -10...+120°C; Standard coil BDA; Connector size 32mm; G 1/4"; DN 2,5mm; Pressure AC 0-14bar; Pressure DC 0-9bar; Length 40mm
BDA08012CS
Coil Type BDA; Standard; Connector size 32mm; Voltage 12VDC
C003-32-6
Connector; Connector size 32mm; Standard; Voltage 0...250VAC/DC

Intrastat No.: 84818099
Country of origin: Italy
Weight: 0.35 Kg
Short Itemnumber: 21A2KV25BDA08012CSC003326
https://www.stasto.hu/web/image/product.template/182023/image_1920?unique=5595f15

21A2KV25
2/2-way solenoid valve series 21A; directly operated; NC; body brass; tube stainless steel one-piece; seal FKM; medium temperature -10...+120°C; standard coil BDA; connector size 32mm; G 1/4"; DN 2,5mm; pressure AC 0-14bar; pressure DC 0-9bar; length 40mm
BDA08012CS
coil type BDA; standard; connector size 32mm; voltage 12VDC
C003-32-6
connector; connector size 32mm; standard; voltage 0...250VAC/DC
