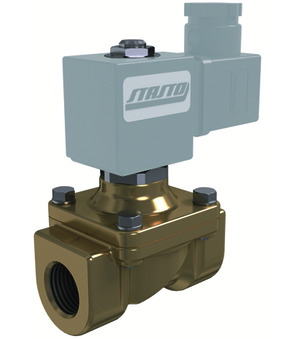

2/2-way solenoid valve 21HF7K0V350-GDV

2/2-way solenoid valve 21HF7K0V350-GDV

2/2-way solenoid valve Series 21H..K0V; Combined operated; NC; Body Brass; Stainless steel tube; Seal FKM; Connector size 32mm; G 11/4"; DN 35mm; Pressure AC 0-16bar; Pressure DC 0-6bar; Medium -10/+140°C; Length 128mm; Standard coil GDV

2/2-Wege-Magnetventil Serie 21H..K0V
Intrastat No.: 84812090
Country of origin: Italy Made in Europe
Weight: 2.591 Kg
Short Itemnumber: 21HF7K0V350GDV
https://www.stasto.hu/web/image/product.template/118293/image_1920?unique=10c6678

2/2-way solenoid valve series 21H..K0V; combined operated; NC; body brass; stainless steel tube; seal FKM; connector size 32mm; G 11/4"; DN 35mm; pressure AC 0-16bar; pressure DC 0-6bar; medium -10/+140°C; length 128mm; standard coil GDV

329,50 € 329.5 EUR 329,50 €

ár kérésre

excl. tax
  • Female thread
  • DN
  • Length
  • Connector size
  • Design
  • Voltage
  • Voltage type
  • Pressure AC
  • Pressure DC
  • Seal
  • Coil
  • Medium temperature
  • Approval

This combination does not exist.

Availability:
See availability
Contact Us

Technical specifications

DN 35 mm
Pressure AC 0...16 bar
Pressure DC 0...6 bar
Medium temperature -10...+140 °C
All specifications (7)
Documents
Data sheets, drawings and CAD files
DN 35 mm
Pressure AC 0...16 bar
Pressure DC 0...6 bar
Medium temperature -10...+140 °C
Length 128 mm
Seal FKM
Female thread G 1 1/4"

21HF7K0V350-GDV

Documents

3 Documents 18 Languages

Czech / Čeština
ZIP

Data Sheets

1

Assembly and Operating Instructions

1

Declarations of Conformity

1
Danish / Dansk
ZIP

Data Sheets

1
German / Deutsch
ZIP

Data Sheets

1

Assembly and Operating Instructions

1

Declarations of Conformity

1
Greek / Ελληνικά
ZIP

Data Sheets

1
English
ZIP

Data Sheets

1

Assembly and Operating Instructions

1

Declarations of Conformity

1
Spanish / Español
ZIP

Data Sheets

1
Finnish / Suomi
ZIP

Data Sheets

1
French / Français
ZIP

Data Sheets

1
Croatian / hrvatski jezik
ZIP

Data Sheets

1
Hungarian / Magyar
ZIP

Data Sheets

1

Assembly and Operating Instructions

1

Declarations of Conformity

1
Italian / Italiano
ZIP

Data Sheets

1
Norwegian Bokmål / Norsk bokmål
ZIP

Data Sheets

1
Dutch / Nederlands
ZIP

Data Sheets

1
Polish / Język polski
ZIP

Data Sheets

1

Assembly and Operating Instructions

1

Declarations of Conformity

1
Romanian / română
ZIP

Data Sheets

1
Slovenian / slovenščina
ZIP

Data Sheets

1

Assembly and Operating Instructions

1

Declarations of Conformity

1
Serbian (Latin) / srpski
ZIP

Data Sheets

1

Assembly and Operating Instructions

1

Declarations of Conformity

1
Swedish / Svenska
ZIP

Data Sheets

1
KTGHF7K0V35
KTGHF7K0V35 x 1.0 Pcs
KTGHF7K0V35
Seal kit; Suitable to series 21HF.K0V; Dimension 11/4", 11/2"; Seal FKM
2/2-way solenoid valve 21HF7K0V350
21HF7K0V350 x 1.0 Pcs
2/2-way solenoid valve 21HF7K0V350
2/2-way solenoid valve Series 21H..K0V; Combined operated; NC; Body Brass; Stainless steel tube; Seal FKM; Connector size 32mm; G 11/4"; DN 35mm; Pressure AC 0-16bar; Medium -10/+120°C; Length 128mm; Standard coil BDA
Accessory Products
Coil BDA08012AS
BDA08012AS
Coil BDA08012AS
Voltage
12V/50Hz
Coil BDA08012CS
BDA08012CS
Coil BDA08012CS
Voltage
12VDC
Coil BDA08024CS
BDA08024CS
Coil BDA08024CS
Voltage
24VDC
Coil BDA08024DS
BDA08024DS
Coil BDA08024DS
Voltage
24V/50-60Hz
Coil BDA08042AS
BDA08042AS
Coil BDA08042AS
Voltage
42V/50Hz
Coil BDA08110CS
BDA08110CS
Coil BDA08110CS
Voltage
110VDC
Coil BDA08110DS
BDA08110DS
Coil BDA08110DS
Voltage
110V/50-60Hz
Coil BDA08223DS
BDA08223DS
Coil BDA08223DS
Voltage
220-230V/50-60Hz
Coil BDA08380DS
BDA08380DS
Coil BDA08380DS
Voltage
380V/50-60Hz
Connector C003-31-CV20-6
C003-31-CV20-6
Connector C003-31-CV20-6
Design
With moulded PVC-cable (2 m)
Voltage
0-250VAC/DC
Brand
STASTO
Connector C003-32-6
C003-32-6
Connector C003-32-6
Design
Standard
Voltage
0-250VAC/DC
Brand
STASTO
Connector C003-32-LV-1
C003-32-LV-1
Connector C003-32-LV-1
Design
With integrated LED-yellow and VDR
Voltage
230VAC/DC
Brand
STASTO
Connector C003-32-LV-2
C003-32-LV-2
Connector C003-32-LV-2
Design
With integrated LED-yellow and VDR
Voltage
24VAC/DC
Brand
STASTO
KTGHF7K0V35
KTGHF7K0V35
