21X2KV120-BDA08024DS-C003-31-CV20-6

Price.

506,50 €
2/2-way solenoid valve Series 21X Store
  1. Products
  2. Armatures
  3. Solenoid valves for liquids and gases
  4. 2/2-way solenoid valves - pilot operated
  5. 2/2-way solenoid valve Series 21X
  6. 21X2KV120-BDA08024DS-C003-31-CV20-6
21X2KV120-BDA08024DS-C003-31-CV20-6
21HT3K0V110-BDA08024DS-C003-32-6
21HT3K0V110-BDA08024DS-C003-32-6
131,01 €
131,01 €
21HT3K0V110-BDA08024DS-C003-32-LV-2
21HT3K0V110-BDA08024DS-C003-32-LV-2
136,25 €
136,25 €

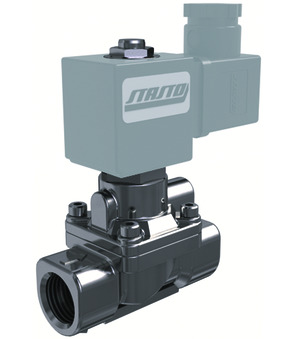

21X2KV120-BDA08024DS-C003-31-CV20-6

21X2KV120
2/2-way solenoid valve Series 21X; Pilot-operated; NC; Body Stainless steel 1.4401; Tube Stainless steel One-piece; Seal FKM; Medium temperature -10...+120°C; Standard coil BDA; Connector size 32mm; G 1/2"; DN 12mm; Pressure AC/DC 0,1-20bar; Length 72mm
BDA08024DS
Coil Type BDA; Standard; Connector size 32mm; Voltage 24V/50-60Hz
C003-31-CV20-6
Connector; Connector size 32mm; With moulded PVC-cable (2 m); Voltage 0...250VAC/DC

Intrastat No.: 84812090
Country of origin: Italy
Weight: 0.92 Kg
Short Itemnumber:21X2KV120BDA08024DSC00331CV206
https://www.stasto.hu/web/image/product.template/192996/image_1920?unique=e543c6a

21X2KV120
2/2-way solenoid valve series 21X; pilot-operated; NC; body stainless steel AISI 316; tube stainless steel one-piece; seal FKM; medium temperature -10...+120°C; standard coil BDA; connector size 32mm; G 1/2"; DN 12mm; pressure AC/DC 0,1-20bar; length 72mm
BDA08024DS
coil type BDA; standard; connector size 32mm; voltage 24V/50-60Hz
C003-31-CV20-6
connector; connector size 32mm; with moulded PVC-cable (2 m); voltage 0...250VAC/DC

506,50 € 506.5 EUR 506,50 €

ár kérésre

  • Female thread
  • DN
  • Length
  • Connector size
  • Design
  • Voltage
  • Voltage type
  • Pressure DC
  • Pressure AC/DC
  • Seal
  • Coil
  • Medium temperature
  • Approval

This combination does not exist.

Availability:
Contact Us
dimension
Female thread G 1/2"
DN 12 mm
Length 72 mm
Designs
Connector size 32 mm
design
Design With moulded PVC-cable (2 m)
Electrical key figures
Voltage 24V/50-60Hz
Voltage type AC
pressure
Pressure DC 0,1...20 bar
Pressure AC/DC 0,1...20 bar
materials
Seal FKM
characteristics
Coil BDA
Medium temperature -10...+120 °C
Approval CE
