31L2A1V30-BDV08024CY-C003-32-6

Price.

197,45 €
3/2-way solenoid valve Series 31L Store
  1. Products
  2. Armatures
  3. Solenoid valves for liquids and gases
  4. 3/2-way solenoid valves - directly operated
  5. 3/2-way solenoid valve Series 31L
  6. 31L2A1V30-BDV08024CY-C003-32-6

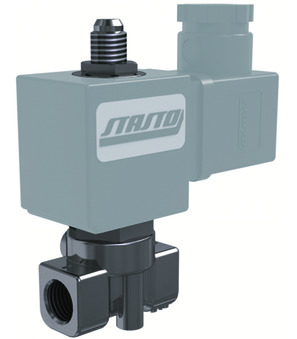

31L2A1V30-BDV08024CY-C003-32-6
31L2A1V30-BDA08012CS-C003-32-LV-2
31L2A1V30-BDA08012CS-C003-32-LV-2
198,29 €
198,29 €
31L2A1V30-BDA08024CS-C003-32-6
31L2A1V30-BDA08024CS-C003-32-6
193,05 €
193,05 €

31L2A1V30-BDV08024CY-C003-32-6

31L2A1V30
3/2-way solenoid valve Series 31L; Directly operated; NC; Body Stainless steel 1.4401; Tube Stainless steel One-piece; Seal FKM; Medium temperature -10...+120°C; Standard coil BDA; Connector size 32mm; G 1/4"; DN 3,0/2,5mm; Pressure AC/DC 0-5bar; Length 39mm
BDV08024CY
Coil Type BDV; For humid area; Approval CSA/UL/VDE; Connector size 32mm; Voltage 24VDC
C003-32-6
Connector; Connector size 32mm; Standard; Voltage 0...250VAC/DC

Intrastat No.: 84818099
Country of origin: Italy
Weight: 0.33 Kg
Short Itemnumber:31L2A1V30BDV08024CYC003326
https://www.stasto.hu/web/image/product.template/211107/image_1920?unique=3858a22

31L2A1V30
3/2-way solenoid valve series 31L; directly operated; NC; body stainless steel AISI 316; tube stainless steel one-piece; seal FKM; medium temperature -10...+120°C; standard coil BDA; connector size 32mm; G 1/4"; DN 3,0/2,5mm; pressure AC/DC 0-5bar; length 39mm
BDV08024CY
coil type BDV; for humid area; approval CSA/UL/VDE; connector size 32mm; voltage 24VDC
C003-32-6
connector; connector size 32mm; Standard; voltage 0...250VAC/DC

197,45 € 197.45 EUR 197,45 €

ár kérésre

  • Female thread
  • DN
  • Length
  • Connector size
  • Design
  • Voltage
  • Voltage type
  • Pressure AC/DC
  • Seal
  • Coil
  • Medium temperature
  • Approval

This combination does not exist.

Availability:
Contact Us
dimension
Female thread G 1/4"
DN 3,0/2,5 mm
Length 39 mm
Designs
Connector size 32 mm
design
Design Standard
Electrical key figures
Voltage 24VDC
Voltage type DC
pressure
Pressure AC/DC 0...5 bar
materials
Seal FKM
characteristics
Coil BDA
Medium temperature -10...+120 °C
Approval UL/CSA/VDE
