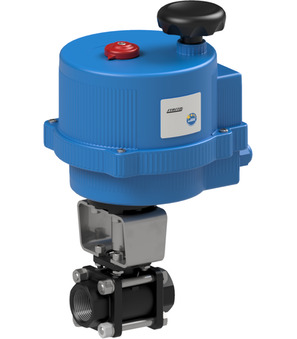

Ball valve with electrical actuator 8E004004-3/4"

Ball valve with electrical actuator 8E004004-3/4"

Ball valve with electrical actuator Series 8E004; Female thread; Body Steel; Ball 1.4301; Seals PTFE/FKM; Medium temperature -10...+160°C; RP 3/4"; DN 20mm; Pressure range 0-40bar; Length 76mm; Operating time 10s; Voltage 100-240VAC

Kugelhahn mit Elektroantrieb Serie 8E004
Intrastat No.: 84818081
Country of origin: Italy
Weight: 2.51 Kg
Short Itemnumber: 8E00400434
https://www.stasto.hu/web/image/product.template/79096/image_1920?unique=f2dcbea

Ball valve with electrical actuator Series 8E004; Female thread; Body Steel; Ball 1.4301; Seals PTFE/FKM; Medium temperature -10...+160°C; RP 3/4"; DN 20mm; Pressure range 0-40bar; Length 76mm; Operating time 10s; Voltage 100-240VAC

575,90 € 575.9 EUR 575,90 €

ár kérésre

excl. tax
  • Female thread
  • DN
  • Length
  • Voltage
  • Pressure range
  • Actuator
  • Operating time

This combination does not exist.

Availability:
See availability
Contact Us

Technical specifications

Pressure range 0...40 bar
Female thread RP 3/4"
DN 20 mm
Length 76 mm
All specifications (6)
Documents
Data sheets, drawings and CAD files
Pressure range 0...40 bar
Female thread RP 3/4"
DN 20 mm
Length 76 mm
Operating time 10 s
Voltage 100-240VAC

8E004004-3/4"

Documents

2 Documents 7 Languages

Czech / Čeština
ZIP

Declarations of Conformity

1

CAD / 3D

1
German / Deutsch
ZIP

Declarations of Conformity

1

CAD / 3D

1
English
ZIP

Declarations of Conformity

1

CAD / 3D

1
Hungarian / Magyar
ZIP

Declarations of Conformity

1

CAD / 3D

1
Polish / Język polski
ZIP

Declarations of Conformity

1

CAD / 3D

1
Slovenian / slovenščina
ZIP

Declarations of Conformity

1

CAD / 3D

1
Serbian (Latin) / srpski
ZIP

Declarations of Conformity

1

CAD / 3D

1
Ball valve made of steel 713000-3/4"
713000-3/4" x 1.0 Pcs
Ball valve made of steel 713000-3/4"
Ball valve made of steel Series 713000; Full bore; Three-parts type; Female thread; Body Steel; Ball 1.4301; Seals PTFE/FKM; Medium temperature -10...+160°C; RP 3/4"; Nominal diameter 20mm; Pressure range 0-40bar; Length 76mm
Electrical actuator VB015-H
VB015-H x 1.0 Pcs
Electrical actuator VB015-H
Electrical actuator Series VB; Suitable for Valves with 90° operation; For a maximum of 100 operations a day; Limit switch-off is wired; 2 potential-free contacts for end position feedback; Incl. manual emergency override; Torque 15Nm; Operating time 10s; Flange ISO5211 F03/F05-Stern 11 mm; Voltage 100-240VAC; Protection class IP65
RI3781 x 1.0 Pcs
RI3781
Mounting bracket; F05/F03-F04; Bolt 11-7
