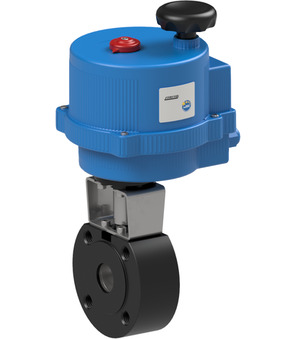

Flanged ball valve with electrical actuator 8E007004-32

Flanged ball valve with electrical actuator 8E007004-32

Flanged ball valve with electrical actuator Series 8E007; Flange PN16; Body Steel; Ball 1.4301; Seals PTFE/FKM; Medium temperature -10...+160°C; DN 32mm; Pressure range 0-16bar; Length 54mm; Operating time 8s; Voltage 100-240VAC

Flanschkugelhahn mit Elektroantrieb Serie 8E007
Intrastat No.: 84818081
Country of origin: Italy Made in Europe
Weight: 6.66 Kg
Short Itemnumber: 8E00700432
https://www.stasto.hu/web/image/product.template/76127/image_1920?unique=8bc9da3

Flanged ball valve with electrical actuator Series 8E007; Flange PN16; Body Steel; Ball 1.4301; Seals PTFE/FKM; Medium temperature -10...+160°C; DN 32mm; Pressure range 0-16bar; Length 54mm; Operating time 8s; Voltage 100-240VAC

858,90 € 858.9 EUR 858,90 €

ár kérésre

excl. tax
  • DN
  • Length
  • Voltage
  • Pressure range
  • Actuator
  • Operating time

This combination does not exist.

Availability:
See availability
Contact Us

Technical specifications

Pressure range 0...16 bar
DN 32 mm
Length 54 mm
Operating time 8 s
All specifications (5)
Documents
Data sheets, drawings and CAD files
Pressure range 0...16 bar
DN 32 mm
Length 54 mm
Operating time 8 s
Voltage 100-240VAC

8E007004-32

Documents

2 Documents 18 Languages

Czech / Čeština
ZIP

Data Sheets

1

CAD / 3D

1
Danish / Dansk
ZIP

Data Sheets

1

CAD / 3D

1
German / Deutsch
ZIP

Data Sheets

1

CAD / 3D

1
Greek / Ελληνικά
ZIP

Data Sheets

1

CAD / 3D

1
English
ZIP

Data Sheets

1

CAD / 3D

1
Spanish / Español
ZIP

Data Sheets

1

CAD / 3D

1
Finnish / Suomi
ZIP

Data Sheets

1

CAD / 3D

1
French / Français
ZIP

Data Sheets

1

CAD / 3D

1
Croatian / hrvatski jezik
ZIP

Data Sheets

1

CAD / 3D

1
Hungarian / Magyar
ZIP

Data Sheets

1

CAD / 3D

1
Italian / Italiano
ZIP

Data Sheets

1

CAD / 3D

1
Norwegian Bokmål / Norsk bokmål
ZIP

Data Sheets

1

CAD / 3D

1
Dutch / Nederlands
ZIP

Data Sheets

1

CAD / 3D

1
Polish / Język polski
ZIP

Data Sheets

1

CAD / 3D

1
Romanian / română
ZIP

Data Sheets

1

CAD / 3D

1
Slovenian / slovenščina
ZIP

Data Sheets

1

CAD / 3D

1
Serbian (Latin) / srpski
ZIP

Data Sheets

1

CAD / 3D

1
Swedish / Svenska
ZIP

Data Sheets

1

CAD / 3D

1
Flanged ball valve 722000-32
722000-32 x 1.0 Pcs
Flanged ball valve 722000-32
Flanged ball valve Series 722000; Flange PN16, Full bore; Body Steel; Ball 1.4301; Seals PTFE/FKM; Pressure range 0...16bar; Medium temperature -20...+160°C; Nominal diameter 32mm; Length 54mm
Electrical actuator VB030-H
VB030-H x 1.0 Pcs
Electrical actuator VB030-H
Electrical actuator Series VB; Suitable for Valves with 90° operation; For a maximum of 100 operations a day; Limit switch-off is wired; 2 potential-free contacts for end position feedback; Incl. manual emergency override; Torque 30Nm; Operating time 8s; Flange ISO5211 F03/F05-Stern 11 mm; Voltage 100-240VAC; Protection class IP67
RI3008 x 1.0 Pcs
RI3008
Mounting bracket; F05-F04/03; Bolt 11-8
Accessory Products
Flanged ball valve 722000-32
722000-32
Flanged ball valve 722000-32
DN
32 mm
Flange
PN16
Pressure range
0...16 bar
