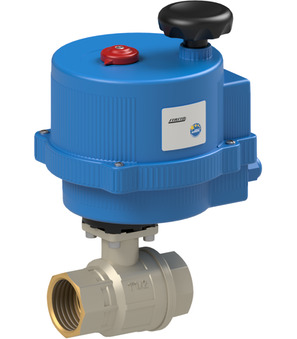

Ball valve with electrical actuator 8E014004-1/4"

Ball valve with electrical actuator 8E014004-1/4"

Ball valve with electrical actuator Series 8E014; Female thread; Body, Ball Brass; Seals PTFE/FKM/EPDM; Medium temperature 0...+100°C; RP 1/4"; DN 8mm; Pressure range 0-40bar; Length 67mm; Operating time 10s; Voltage 100-240VAC

Kugelhahn mit Elektroantrieb Serie 8E014
Intrastat No.: 84818081
Country of origin: Italy
Weight: 1.863 Kg
Short Itemnumber: 8E01400414
https://www.stasto.hu/web/image/product.template/79105/image_1920?unique=f2dcbea

Ball valve with electrical actuator Series 8E014; Female thread; Body, Ball Brass; Seals PTFE/FKM/EPDM; Medium temperature 0...+100°C; RP 1/4"; DN 8mm; Pressure range 0-40bar; Length 67mm; Operating time 10s; Voltage 100-240VAC

466,50 € 466.5 EUR 466,50 €

ár kérésre

excl. tax
  • Female thread
  • DN
  • Length
  • Voltage
  • Pressure range
  • Actuator
  • Operating time

This combination does not exist.

Availability:
See availability
Contact Us

Technical specifications

Pressure range 0...40 bar
Female thread RP 1/4"
DN 8 mm
Length 67 mm
All specifications (6)
Documents
Data sheets, drawings and CAD files
Pressure range 0...40 bar
Female thread RP 1/4"
DN 8 mm
Length 67 mm
Operating time 10 s
Voltage 100-240VAC

8E014004-1/4"

Documents

3 Documents 18 Languages

Czech / Čeština
ZIP

Data Sheets

1

Declarations of Conformity

1

CAD / 3D

1
Danish / Dansk
ZIP

Data Sheets

1

CAD / 3D

1
German / Deutsch
ZIP

Data Sheets

1

Declarations of Conformity

1

CAD / 3D

1
Greek / Ελληνικά
ZIP

Data Sheets

1

CAD / 3D

1
English
ZIP

Data Sheets

1

Declarations of Conformity

1

CAD / 3D

1
Spanish / Español
ZIP

Data Sheets

1

CAD / 3D

1
Finnish / Suomi
ZIP

Data Sheets

1

CAD / 3D

1
French / Français
ZIP

Data Sheets

1

CAD / 3D

1
Croatian / hrvatski jezik
ZIP

Data Sheets

1

CAD / 3D

1
Hungarian / Magyar
ZIP

Data Sheets

1

Declarations of Conformity

1

CAD / 3D

1
Italian / Italiano
ZIP

Data Sheets

1

CAD / 3D

1
Norwegian Bokmål / Norsk bokmål
ZIP

Data Sheets

1

CAD / 3D

1
Dutch / Nederlands
ZIP

Data Sheets

1

CAD / 3D

1
Polish / Język polski
ZIP

Data Sheets

1

Declarations of Conformity

1

CAD / 3D

1
Romanian / română
ZIP

Data Sheets

1

CAD / 3D

1
Slovenian / slovenščina
ZIP

Data Sheets

1

Declarations of Conformity

1

CAD / 3D

1
Serbian (Latin) / srpski
ZIP

Data Sheets

1

Declarations of Conformity

1

CAD / 3D

1
Swedish / Svenska
ZIP

Data Sheets

1

CAD / 3D

1
Ball valve made of brass 2500-1/4"-A
2500-1/4"-A x 1.0 Pcs
Ball valve made of brass 2500-1/4"-A
Ball valve made of brass Series 2500; Bare shaft; Full bore; Female thread; Seal PTFE/FKM/EPDM; Medium temperature -20...+160°C; RP 1/4"; Nominal diameter 8mm; Pressure range 0...40bar; Length 67mm; Flange ISO5211 F03; Square 9mm
Electrical actuator VB015-H
VB015-H x 1.0 Pcs
Electrical actuator VB015-H
Electrical actuator Series VB; Suitable for Valves with 90° operation; For a maximum of 100 operations a day; Limit switch-off is wired; 2 potential-free contacts for end position feedback; Incl. manual emergency override; Torque 15Nm; Operating time 10s; Flange ISO5211 F03/F05-Stern 11 mm; Voltage 100-240VAC; Protection class IP65
