Ball valve with electrical actuator 8E032002-21/2"

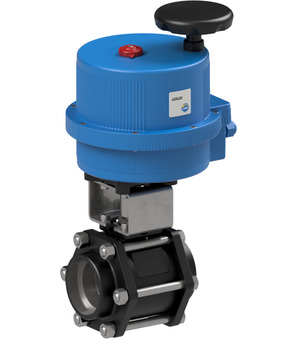

Ball valve with electrical actuator 8E032002-21/2"

Ball valve with electrical actuator Series 8E032; Socket weld ends; Body Steel; Ball 1.4301; Seals PTFE/FKM; Medium temperature -10...+160°C; DN 65mm; Pressure range 0-16bar; Length 153mm; Operating time 27s; Voltage 24VAC/DC

Kugelhahn mit Elektroantrieb Serie 8E032
Intrastat No.: 84818081
Country of origin: Italy
Weight: 6.99 Kg
Short Itemnumber: 8E032002212
https://www.stasto.hu/web/image/product.template/76184/image_1920?unique=8bc9da3

Ball valve with electrical actuator Series 8E032; Socket weld ends; Body Steel; Ball 1.4301; Seals PTFE/FKM; Medium temperature -10...+160°C; DN 65mm; Pressure range 0-16bar; Length 153mm; Operating time 27s; Voltage 24VAC/DC

1.286,90 € 1286.9 EUR 1.286,90 €

ár kérésre

excl. tax
  • Socket weld ends
  • DN
  • Length
  • Voltage
  • Pressure range
  • Actuator
  • Operating time

This combination does not exist.

Availability:
See availability
Contact Us

Technical specifications

Pressure range 0...16 bar
DN 65 mm
Length 153 mm
Operating time 27 s
All specifications (6)
Documents
Data sheets, drawings and CAD files
Pressure range 0...16 bar
DN 65 mm
Length 153 mm
Operating time 27 s
Voltage 24VAC/DC
Socket weld ends 65 mm

8E032002-21/2"

Documents

3 Documents 18 Languages

Czech / Čeština
ZIP

Data Sheets

1

Declarations of Conformity

1

CAD / 3D

1
Danish / Dansk
ZIP

Data Sheets

1

CAD / 3D

1
German / Deutsch
ZIP

Data Sheets

1

Declarations of Conformity

1

CAD / 3D

1
Greek / Ελληνικά
ZIP

Data Sheets

1

CAD / 3D

1
English
ZIP

Data Sheets

1

Declarations of Conformity

1

CAD / 3D

1
Spanish / Español
ZIP

Data Sheets

1

CAD / 3D

1
Finnish / Suomi
ZIP

Data Sheets

1

CAD / 3D

1
French / Français
ZIP

Data Sheets

1

CAD / 3D

1
Croatian / hrvatski jezik
ZIP

Data Sheets

1

CAD / 3D

1
Hungarian / Magyar
ZIP

Data Sheets

1

Declarations of Conformity

1

CAD / 3D

1
Italian / Italiano
ZIP

Data Sheets

1

CAD / 3D

1
Norwegian Bokmål / Norsk bokmål
ZIP

Data Sheets

1

CAD / 3D

1
Dutch / Nederlands
ZIP

Data Sheets

1

CAD / 3D

1
Polish / Język polski
ZIP

Data Sheets

1

Declarations of Conformity

1

CAD / 3D

1
Romanian / română
ZIP

Data Sheets

1

CAD / 3D

1
Slovenian / slovenščina
ZIP

Data Sheets

1

Declarations of Conformity

1

CAD / 3D

1
Serbian (Latin) / srpski
ZIP

Data Sheets

1

Declarations of Conformity

1

CAD / 3D

1
Swedish / Svenska
ZIP

Data Sheets

1

CAD / 3D

1
Ball valve made of steel 714000-65
714000-65 x 1.0 Pcs
Ball valve made of steel 714000-65
Ball valve made of steel Series 714000; Full bore; Three-parts type; Socket weld ends; Body Steel; Ball 1.4301; Seals PTFE-reinforced/FKM; Medium temperature -10...+160°C; Nominal diameter 65mm; Pressure range 0-16bar; Length 153mm
Electrical actuator VB110-L
VB110-L x 1.0 Pcs
Electrical actuator VB110-L
Electrical actuator Series VB; Suitable for Valves with 90° operation; For a maximum of 100 operations a day; Limit switch-off is wired; 2 potential-free contacts for end position feedback; Incl. manual emergency override; Torque 110Nm; Operating time 27s; Flange ISO5211 F07/F10-Stern 17 mm; Voltage 24VAC/DC; Protection class IP67
RI3003 x 1.0 Pcs
RI3003
Mounting bracket; F07/F07; 17-14
Accessory Products
Ball valve made of steel 714000-65
714000-65
Ball valve made of steel 714000-65
Socket weld ends
65 mm
DN
65 mm
Pressure range
0...16 bar
