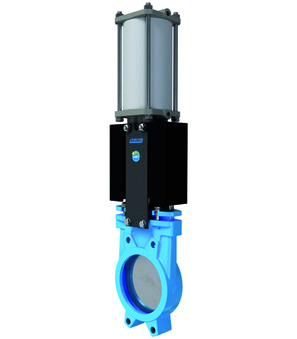

Knife gate valve with double acting actuator A1N2H2-5-100-PM-B

Knife gate valve with double acting actuator A1N2H2-5-100-PM-B

Knife gate valve with double acting actuator Series A1N2H2-5-PMB; Wafer type; Body Cast iron EN-GJL-250/Ductile iron EN-GJS-500-7; Gate 1.4301; Soft sealed EPDM; Packing PTFE-Synthetic/EPDM; Screws Stainless steel; Nominal flange pressure PN10; Unidirectional sealed; Control pressure 5,5...8bar; Medium temperature -5...+90°C; Prepared for 2 mechanical switches MSU01A; DN 100mm; Length 50mm; Pressure range 0…10bar

Intrastat No.: 84818061
Country of origin: Spain
Weight: 12.77 Kg
Short Itemnumber: A1N2H25100PMB
https://www.stasto.hu/web/image/product.template/66789/image_1920?unique=a4dbc74

Knife gate valve with double acting actuator Series A1N2H2-5-PMB; Wafer type; Body Cast iron EN-GJL-250/Ductile iron EN-GJS-500-7; Gate 1.4301; Soft sealed EPDM; Packing PTFE-Synthetic/EPDM; Screws Stainless steel; Nominal flange pressure PN10; Unidirectional sealed; Control pressure 5,5...8bar; Medium temperature -5...+90°C; Prepared for 2 mechanical switches MSU01A; DN 100mm; Length 50mm; Pressure range 0…10bar

737,30 € 737.3 EUR 737,30 €

ár kérésre

excl. tax
  • Connection
  • DN
  • Length
  • Cable length
  • Function
  • Actuation
  • Connector size
  • Design
  • Voltage
  • Pressure range
  • Switch design
  • Coil
  • Flow rate
  • Suitable silencer

This combination does not exist.

Availability:
See availability
Contact Us

Technical specifications

Pressure range 0...10 bar
DN 100 mm
Length 50 mm
Documents
Data sheets, drawings and CAD files
Pressure range 0...10 bar
DN 100 mm
Length 50 mm

A1N2H2-5-100-PM-B

Documents

1 Documents

Language-independent
ZIP

CAD / 3D

1
No spare parts are available for this product.
