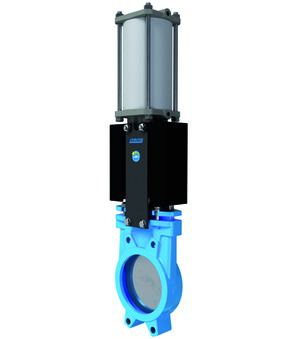

Knife gate valve with double acting actuator A1N2H2-5-1200-PIB
Knife gate valve with double acting actuator Series A1N-PIB; Wafer type; Body Cast iron EN-GJL-250/Ductile iron EN-GJS-500-7; Gate 1.4301; Soft sealed EPDM; Packing PTFE-Synthetic/EPDM; Screws Stainless steel; Nominal flange pressure PN10; Unidirectional sealed; Control pressure 5,5...8bar; Medium temperature -5...+90°C; Prepared for 2 inductive switches MSU03, MSU04, MSU05; DN 1200mm; Length 150mm; Pressure range 0...2bar
Country of origin: Spain
Short Itemnumber:A1N2H251200PIB
knife gate valve with double acting actuator series A1N-PIB; wafer type; body cast iron EN-GJL-250/ductile iron EN-GJS-500-7; gate AISI 304; soft sealed EPDM; packing PTFE-synthetic/EPDM; screws stainless steel; nominal flange pressure PN10; unidirectional sealed; control pressure 5,5...8bar; medium temperature -5...+90°C; prepared for 2 inductive switches MSU03, MSU04, MSU05; DN 1200mm; length 150mm; pressure range 0...2bar
| dimension | |
|---|---|
| DN | 1200 mm |
| Length | 150 mm |
| pressure | |
| Pressure range | 0...2 bar |
