A1N2H2-5-150-2EM-02

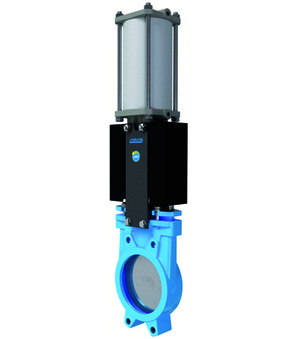

Knife gate valve with double acting actuator; Wafer type; Body Cast iron EN-GJL-250/Ductile iron EN-GJS-500-7; Gate 1.4301; Soft sealed EPDM; Packing PTFE-Synthetic/EPDM; Nominal flange pressure PN10; Unidirectional sealed; Control pressure 5,5...8bar; Medium temperature -5...+90 °C; DN 150mm; Length 60mm; Pressure range 0-10bar; Incl. 2 mechanical limit switches OPEN/CLOSED XCKM115; Greased With Pneumatic grease PG; Limit switch mounted on inlet side
Country of origin: Spain
Weight: 21.15 Kg
Short Itemnumber: A1N2H251502EM02
knife gate valve with double acting actuator; wafer type; body cast iron EN-GJL-250/ductile iron EN-GJS-500-7; gate AISI 304; soft sealed EPDM; packing PTFE-synthetic/EPDM; nominal flange pressure PN10; unidirectional sealed; control pressure 5,5...8bar; medium temperature -5...+90 °C; DN 150mm; length 60mm; pressure range 0-10bar; incl. 2 mechanical limit switches OPEN/CLOSED XCKM115; greased with pneumatic grease PG; limit switch mounted on inlet side
