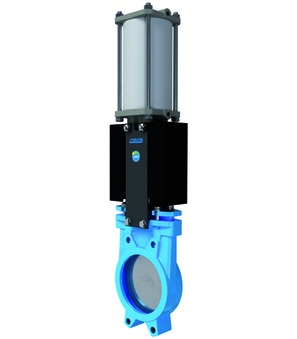

Knife gate valve with double acting actuator A1N2H2-5-200-PM-B

Knife gate valve with double acting actuator A1N2H2-5-200-PM-B

Knife gate valve with double acting actuator Series A1N2H2-5-PMB; Wafer type; Body Cast iron EN-GJL-250/Ductile iron EN-GJS-500-7; Gate 1.4301; Soft sealed EPDM; Packing PTFE-Synthetic/EPDM; Screws Stainless steel; Nominal flange pressure PN10; Unidirectional sealed; Control pressure 5,5...8bar; Medium temperature -5...+90°C; Prepared for 2 mechanical switches MSU01A; DN 200mm; Length 60mm; Pressure range 0…8bar

Intrastat No.: 84818061
Country of origin: Spain Made in Europe
Weight: 34.05 Kg
Short Itemnumber: A1N2H25200PMB
https://www.stasto.hu/web/image/product.template/66792/image_1920?unique=a4dbc74

Knife gate valve with double acting actuator Series A1N2H2-5-PMB; Wafer type; Body Cast iron EN-GJL-250/Ductile iron EN-GJS-500-7; Gate 1.4301; Soft sealed EPDM; Packing PTFE-Synthetic/EPDM; Screws Stainless steel; Nominal flange pressure PN10; Unidirectional sealed; Control pressure 5,5...8bar; Medium temperature -5...+90°C; Prepared for 2 mechanical switches MSU01A; DN 200mm; Length 60mm; Pressure range 0…8bar

1.284,70 € 1284.7 EUR 1.284,70 €

ár kérésre

excl. tax
  • Connection
  • DN
  • Length
  • Cable length
  • Function
  • Actuation
  • Connector size
  • Design
  • Voltage
  • Pressure range
  • Pressure range
  • Switch design
  • Coil
  • Flow rate
  • Suitable silencer

This combination does not exist.

Availability:
See availability
Contact Us

Technical specifications

Pressure range 0...10 bar
Pressure range 0...8 bar
DN 200 mm
Length 60 mm
Documents
Data sheets, drawings and CAD files
Pressure range 0...10 bar
Pressure range 0...8 bar
DN 200 mm
Length 60 mm

A1N2H2-5-200-PM-B

Documents

1 Documents

Language-independent
ZIP

CAD / 3D

1
