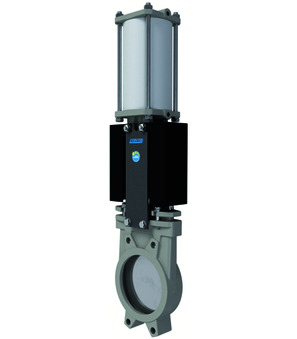

A1N2I2-5-350-PI-ABS40-CS02400-6-14123-0000-S

A1N2I2-5-350-PI-ABS40-CS02400-6-14123-0000-S

A1N2I2-5-350-PI
Plattenschieber mit doppeltwirkendem Pneumatikantrieb Serie A1N; Zwischenflanschausführung; Gehäuse 1.4408; Schieberplatte 1.4401; weichdichtend EPDM; Packung PTFE-synthetisch/EPDM; Flanschnenndruck PN10; einseitig dichtend; Steuerdruck 5,5...8bar; Mediumstemperatur -5...+90°C; vorbereitet für 2 induktive Endlagenschalter MSU03, MSU04, MSU05; DN 300mm; Einbaulänge 70mm; Druckbereich 0…6bar
ABS40
Mounted pilot valve Series ABS; Suitable for Pneumatically operated knife gate valves; 5/2-way solenoid valve; Flow control valves; Silencer; Mounted at cylinder; Type of coil CS; Connector size 16mm; 5/2-Wege-Magnetventil (K52W1014); DN gate valve 50-400mm
CS02400
Coil Type CS; Connector size 16mm; Voltage 24VDC
6-14123-0000-S
Connector; Connector size 16mm; Standard; Voltage 0-250VAC/DC

Plattenschieber mit doppeltwirkendem Pneumatikantrieb Serie A1N-PI
Intrastat No.: 84818063
Country of origin: Spain Made in Europe
Weight: 67.32 Kg
Short Itemnumber: A1N2I25350PIABS40CS024006141230000S
https://www.stasto.hu/web/image/product.template/206592/image_1920?unique=48dc65c

A1N2I2-5-350-PI
Plattenschieber mit doppeltwirkendem Pneumatikantrieb Serie A1N; Zwischenflanschausführung; Gehäuse 1.4408; Schieberplatte 1.4401; weichdichtend EPDM; Packung PTFE-synthetisch/EPDM; Flanschnenndruck PN10; einseitig dichtend; Steuerdruck 5,5...8bar; Mediumstemperatur -5...+90°C; vorbereitet für 2 induktive Endlagenschalter MSU03, MSU04, MSU05; DN 300mm; Einbaulänge 70mm; Druckbereich 0…6bar
ABS40
mounted pilot valve series ABS; suitable for pneumatically operated knife gate valves; 5/2-way solenoid valve; flow control valves; silencer; mounted at cylinder; type of coil CS; connector size 16mm; 5/2-Wege-Magnetventil (K52W1014); DN gate valve 50-400mm
CS02400
coil type CS; connector size 16mm; voltage 24VDC
6-14123-0000-S
connector; connector size 16mm; Standard; voltage 0-250VAC/DC

6.500,00 € 6500.0 EUR 6.500,00 €

ár kérésre

excl. tax
  • Connection
  • DN
  • Length
  • Cable length
  • Function
  • Actuation
  • Connector size
  • Design
  • Voltage
  • Pressure range
  • Switch design
  • Coil
  • Flow rate
  • Brand
  • DN-Link
  • Electrical connection
  • Suitable silencer

This combination does not exist.

Availability:
See availability
Contact Us

Technical specifications

Pressure range 0...6 bar
DN 350 mm
Length 96 mm
Voltage 24VDC
All specifications (6)
Documents
Data sheets, drawings and CAD files
Pressure range 0...6 bar
DN 350 mm
Length 96 mm
Voltage 24VDC
Design Standard
Brand STASTO

A1N2I2-5-350-PI-ABS40-CS02400-6-14123-0000-S

Documents

7 Documents 18 Languages

Czech / Čeština
ZIP

Data Sheets

3

Declarations of Conformity

1

CAD / 3D

3
Danish / Dansk
ZIP

Data Sheets

2

CAD / 3D

3
German / Deutsch
ZIP

Data Sheets

3

Declarations of Conformity

1

CAD / 3D

3
Greek / Ελληνικά
ZIP

Data Sheets

2

CAD / 3D

3
English
ZIP

Data Sheets

3

Declarations of Conformity

1

CAD / 3D

3
Spanish / Español
ZIP

Data Sheets

2

CAD / 3D

3
Finnish / Suomi
ZIP

Data Sheets

2

CAD / 3D

3
French / Français
ZIP

Data Sheets

2

CAD / 3D

3
Croatian / hrvatski jezik
ZIP

Data Sheets

2

CAD / 3D

3
Hungarian / Magyar
ZIP

Data Sheets

3

Declarations of Conformity

1

CAD / 3D

3
Italian / Italiano
ZIP

Data Sheets

2

CAD / 3D

3
Norwegian Bokmål / Norsk bokmål
ZIP

Data Sheets

2

CAD / 3D

3
Dutch / Nederlands
ZIP

Data Sheets

2

CAD / 3D

3
Polish / Język polski
ZIP

Data Sheets

3

Declarations of Conformity

1

CAD / 3D

3
Romanian / română
ZIP

Data Sheets

2

CAD / 3D

3
Slovenian / slovenščina
ZIP

Data Sheets

3

Declarations of Conformity

1

CAD / 3D

3
Serbian (Latin) / srpski
ZIP

Data Sheets

3

Declarations of Conformity

1

CAD / 3D

3
Swedish / Svenska
ZIP

Data Sheets

2

CAD / 3D

3
A1N2I2-5-350-PI x 1.0 Pcs
Knife gate valve with double acting actuator A1N2I2-5-350-PI
knife gate valve with double acting actuator series A1N-PI; wafer type; housing AISI 316; gate AISI 316; soft sealed EPDM; packing PTFE-synthetic/EPDM; nominal flange pressure PN10; unidirectional sealed; control pressure 5,5...8bar; medium temperature -5...+90°C; prepared for 2 inductive switches MSU03, MSU04, MSU05; DN 350mm; length 96mm; pressure range 0…6bar
Mounted pilot valve ABS40
ABS40 x 1.0 Pcs
Mounted pilot valve ABS40
Mounted pilot valve Series ABS; Suitable for Pneumatically operated knife gate valves; 5/2-way solenoid valve; Flow control valves; Silencer; Mounted at cylinder; Type of coil CS; Connector size 16mm; 5/2-Wege-Magnetventil (K52W1014); DN gate valve 50-400mm
CS02400
CS02400 x 1.0 Pcs
CS02400
Coil Type CS; Connector size 16mm; Voltage 24VDC
6-14123-0000-S
6-14123-0000-S x 1.0 Pcs
6-14123-0000-S
Connector; Connector size 16mm; Standard; Voltage 0-250VAC/DC
