A1N2I2-5-80-PI-ABS40-CS02400-6-14123-0000-S-IG5401

Price.

1.147,57 €

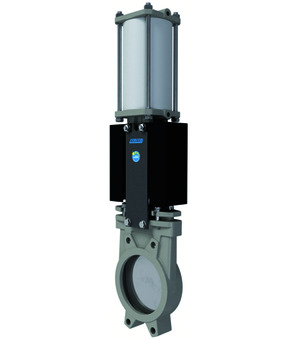

Knife gate valve with double acting actuator Series A1N-PI Store
  1. Products
  2. Armatures
  3. Valves, butterfly valves and gate valves - automatically operated
  4. Knife gate valves - pneumatically operated
  5. Knife gate valve with double acting actuator Series A1N-PI
  6. A1N2I2-5-80-PI-ABS40-CS02400-6-14123-0000-S-IG5401
A1N2I2-5-80-PI-ABS40-CS02400-6-14123-0000-S-IG5401
A1N2I2-5-80-PI-ABS40-CS02400-6-14123-0000-S
A1N2I2-5-80-PI-ABS40-CS02400-6-14123-0000-S
933,77 €
933,77 €
A1N2I2-5-80-PI-ABS40-CS02400-C001-31-LVCV30-2
A1N2I2-5-80-PI-ABS40-CS02400-C001-31-LVCV30-2
950,64 €
950,64 €

A1N2I2-5-80-PI-ABS40-CS02400-6-14123-0000-S-IG5401

A1N2I2-5-80-PI
knife gate valve with double acting actuator series A1N-PI; wafer type; body AISI 316; gate AISI 316; soft sealed EPDM; packing PTFE-synthetic/EPDM; nominal flange pressure PN10; unidirectional sealed; control pressure 5,5...8bar; medium temperature -5...+90°C; prepared for 2 inductive switches MSU03, MSU04, MSU05; DN 80mm; length 50mm; pressure range 0...10bar
ABS40
mounted pilot valve series ABS; suitable for pneumatically operated knife gate valves; 5/2-way solenoid valve; flow control valves; silencer; mounted at cylinder; type of coil CS; connector size 16mm; 5/2-Wege-Magnetventil (K52W1014); DN gate valve 50-400mm
CS02400
coil type CS; connector size 16mm; voltage 24VDC
6-14123-0000-S
connector; connector size 16mm; Standard; voltage 0-250VAC/DC
IG5401
inductive proximity switch M18; 10...36VDC; NO PNP; IP67; cable 2m; PVC; 3x0,5mm2

Intrastat No.: 84818063
Country of origin: Spain
Weight: 12.15 Kg
Short Itemnumber:A1N2I2580PIABS40CS024006141230000SIG5401
https://www.stasto.hu/web/image/product.template/218548/image_1920?unique=350e5f7

A1N2I2-5-80-PI
knife gate valve with double acting actuator series A1N-PI; wafer type; body AISI 316; gate AISI 316; soft sealed EPDM; packing PTFE-synthetic/EPDM; nominal flange pressure PN10; unidirectional sealed; control pressure 5,5...8bar; medium temperature -5...+90°C; prepared for 2 inductive switches MSU03, MSU04, MSU05; DN 80mm; length 50mm; pressure range 0...10bar
ABS40
mounted pilot valve series ABS; suitable for pneumatically operated knife gate valves; 5/2-way solenoid valve; flow control valves; silencer; mounted at cylinder; type of coil CS; connector size 16mm; 5/2-Wege-Magnetventil (K52W1014); DN gate valve 50-400mm
CS02400
coil type CS; connector size 16mm; voltage 24VDC
6-14123-0000-S
connector; connector size 16mm; Standard; voltage 0-250VAC/DC
IG5401
inductive proximity switch M18; 10...36VDC; NO PNP; IP67; cable 2m; PVC; 3x0,5mm2

1.147,57 € 1147.57 EUR 1.147,57 €

ár kérésre

  • Connection
  • DN
  • Length
  • Cable length
  • Function
  • Actuation
  • Connector size
  • Design
  • Voltage
  • Pressure range
  • Switch design
  • Coil
  • Flow rate
  • Electrical connection
  • Suitable silencer

This combination does not exist.

Availability:
Contact Us
dimension
DN 80 mm
Length 50 mm
Designs
Connector size 16 mm
design
Design Standard
Electrical key figures
Voltage 24VDC
pressure
Pressure range 0...10 bar
characteristics
Coil CS

Data sheets, Instructions, 3D-files and Certificates...

In your language
ZIP
Data Sheets
3
Data sheet_6-14123-0000-S_EN.pdf
6-14123-0000-S
Download
Data sheet_Coil Type CS_EN.pdf
CS02400
Download
Data sheet_Knife gate valves - pneumatically operated_EN.pdf
Download
Declarations of Conformity
1
Declaration of conformity_Knife gate valves - pneumatically operated_EN.pdf
Download
CAD / 3D
3
CADSTEP_6141230000S.stp
6-14123-0000-S
Download
CADSTEP_ABS40.stp
ABS40
Download
CADSTEP_CS02400.stp
CS02400
Download

ZIP
Datové listy
3
Datový list_6-14123-0000-S_CS.pdf
6-14123-0000-S
Download
Datový list_magnetická cívka typ CS_CS.pdf
CS02400
Download
Datový list_nožová šoupátka - pneumaticky ovládaná_CS.pdf
Download
Prohlášení o shodě
1
Prohlášení o shodě_nožová šoupátka - pneumaticky ovládaná_CS.pdf
Download

ZIP
Data Sheets
2
Datablad_Magnetspole Type CS_DA_DK.pdf
CS02400
Download
Datablad_Pladeskydeventil – pneumatisk_DA_DK.pdf
Download

ZIP
Datenblätter
3
Datenblatt_6-14123-0000-S_DE.pdf
6-14123-0000-S
Download
Datenblatt_Magnetspule Typ CS_DE.pdf
CS02400
Download
Datenblatt_Plattenschieber - pneumatisch_DE.pdf
Download
Konformitätserklärungen
1
Konformitätserklärung_Plattenschieber - pneumatisch_DE.pdf
Download

ZIP
Data Sheets
2
Δελτίο δεδομένων_Θυροφράγμα πλακών – πνευματικό_EL_GR.pdf
Download
Δελτίο δεδομένων_Πηνίο ηλεκτρομαγνήτη Τύπος CS_EL_GR.pdf
CS02400
Download

ZIP
Data Sheets
2
Ficha técnica_Bobina magnética Tipo CS_ES.pdf
CS02400
Download
Ficha técnica_Válvula de guillotina - neumática_ES.pdf
Download

ZIP
Data Sheets
2
Tietolehti_Levyliu’utusventtiili – pneumaattinen_FI.pdf
Download
Tietolehti_Magneettikela Tyyppi CS_FI.pdf
CS02400
Download

ZIP
Data Sheets
2
Fiche technique_Bobine électromagnétique Type CS_FR.pdf
CS02400
Download
Fiche technique_Vanne guillotine - pneumatique_FR.pdf
Download

ZIP
Data Sheets
2
Podatkovni list_Magnetska zavojnica Tip CS_HR.pdf
CS02400
Download
Podatkovni list_Pločasti zasun – pneumatski_HR.pdf
Download

ZIP
Adatlapok
3
Adatlap_6-14123-0000-S_HU.pdf
6-14123-0000-S
Download
Adatlap_Tolózár - pneumatikus működtetéssel_HU.pdf
Download
Adatlap_mágnestekercs típus CS_HU.pdf
CS02400
Download
Megfelelőségi nyilatkozatok
1
Megfelelőségi nyilatkozat_Tolózár - pneumatikus működtetéssel_HU.pdf
Download

ZIP
Data Sheets
2
Scheda tecnica_Bobina magnetica Tipo CS_IT.pdf
CS02400
Download
Scheda tecnica_Serranda a ghigliottina - pneumatica_IT.pdf
Download

ZIP
Data Sheets
2
Datablad_Magnetspole Type CS_NB_NO.pdf
CS02400
Download
Datablad_Platespjeldventil – pneumatisk_NB_NO.pdf
Download

ZIP
Data Sheets
2
Datasheet_Magneetspoel Type CS_NL.pdf
CS02400
Download
Datasheet_Plaatafsluiter - pneumatisch_NL.pdf
Download

ZIP
Karty katalogowe
3
Arkusz danych_6-14123-0000-S_PL.pdf
6-14123-0000-S
Download
Arkusz danych_cewka elektromagnetyczna typ CS_PL.pdf
CS02400
Download
Arkusz danych_zasuwy nożowe - pneumatyczne_PL.pdf
Download
Deklaracje zgodności
1
Deklaracja zgodności_zasuwy nożowe - pneumatyczne_PL.pdf
Download

ZIP
Data Sheets
2
Fișă de date_Bobină solenoid tip CS_RO.pdf
CS02400
Download
Fișă de date_Supapă cu cuțit - pneumatică_RO.pdf
Download

ZIP
Podatkovni listi
3
Podatkovni list_6-14123-0000-S_SL.pdf
6-14123-0000-S
Download
Podatkovni list_Magnetna tuljava Tip CS_SL.pdf
CS02400
Download
Podatkovni list_Ploščati ventili - pnevmatski_SL.pdf
Download
Izjave o skladnosti
1
Izjava o skladnosti_Ploščati ventili - pnevmatski_SL.pdf
Download

ZIP
Data Sheets
3
Tehnički list_6-14123-0000-S_SRLATIN.pdf
6-14123-0000-S
Download
Tehnički list_namotaj tip CS_SRLATIN.pdf
CS02400
Download
Tehnički list_nožasti zasuni sa pneumatskim pogonom_SRLATIN.pdf
Download
Declarations of Conformity
1
Deklaracija o usklađenosti_nožasti zasuni sa pneumatskim pogonom_SRLATIN.pdf
Download

ZIP
Data Sheets
2
Datablad_Magnetspole Typ CS_SV.pdf
CS02400
Download
Datablad_Plattskjutsventil – pneumatiskt_SV.pdf
Download
Knife gate valve with double acting actuator A1N2I2-5-80-PI
A1N2I2-5-80-PI x 1.0
Knife gate valve with double acting actuator A1N2I2-5-80-PI
Knife gate valve with double acting actuator Series A1N-PI; Wafer type; Body 1.4408; Gate 1.4401; Soft sealed EPDM; Packing PTFE-Synthetic/EPDM; Nominal flange pressure PN10; Unidirectional sealed; Control pressure 5,5...8bar; Medium temperature -5...+90°C; Prepared for 2 inductive switches MSU03, MSU04, MSU05; DN 80mm; Length 50mm; Pressure range 0...10bar
Add to Cart
Mounted pilot valve ABS40
ABS40 x 1.0
Mounted pilot valve ABS40
Mounted pilot valve Series ABS; Suitable for Pneumatically operated knife gate valves; 5/2-way solenoid valve; Flow control valves; Silencer; Mounted at cylinder; Type of coil CS; Connector size 16mm; 5/2-Wege-Magnetventil (K52W1014); DN gate valve 50-400mm
Add to Cart
IG5401 x 2.0
IG5401
Inductive proximity switch M18; 10...36VDC; NO PNP; IP67; Cable 2m; PVC; 3x0,5mm2
