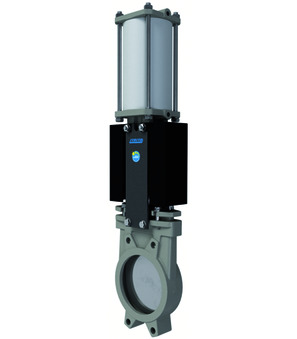

Knife gate valve with double acting actuator A1N2I6-G-250-PI

Knife gate valve with double acting actuator A1N2I6-G-250-PI

Knife gate valve with double acting actuator Series A1N-PI; Wafer type; Body 1.4408; Gate 1.4401; Soft sealed Silicone; Packing PTFE-Synthetic/Silicone; Nominal flange pressure PN10; Unidirectional sealed; Control pressure 5,5...8bar; Medium temperature -5...+200°C; Prepared for 2 inductive switches MSU03, MSU04, MSU05; DN 250mm; Length 70mm; Pressure range 0…8bar

Intrastat No.: 84818063
Country of origin: Spain
Weight: 48.0 Kg
Short Itemnumber: A1N2I6G250PI
https://www.stasto.hu/web/image/product.template/219928/image_1920?unique=81f7f4e

knife gate valve with double acting actuator series A1N-PI; wafer type; body AISI 316; gate AISI 316; soft sealed silicone; packing PTFE-synthetic/silicone; nominal flange pressure PN10; unidirectional sealed; control pressure 5,5...8bar; medium temperature -5...+200°C; prepared for 2 inductive switches MSU03, MSU04, MSU05; DN 250mm; length 70mm; pressure range 0…8bar

999.999,00 € 999999.0 EUR 999.999,00 €

On request

  • DN
  • Length
  • Pressure range
  • Brand

This combination does not exist.

Availability:
See availability
Contact Us

Technical specifications

Pressure range 0...8 bar
DN 250 mm
Length 70 mm
Brand STASTO
Pressure range 0...8 bar
DN 250 mm
Length 70 mm
Brand STASTO
No spare parts are available for this product.
