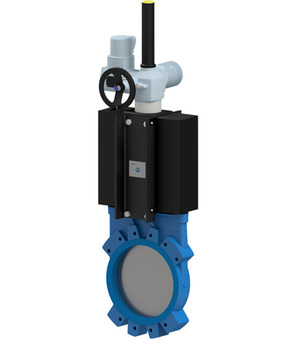

Knife gate valve with electric actuator AB1EM2I2-5-250

Knife gate valve with electric actuator AB1EM2I2-5-250

Knife gate valve with electric actuator Series AB1EM2H2-5-B; Wafer type; Rising stem; Body 1.4408; Gate 1.4401; Soft sealed EPDM; Packing PTFE-Synthetic/EPDM; Nominal flange pressure PN10; Sealed in both directions; Voltage 400V/3/50Hz; Medium temperature -5...+90°C; DN 250mm; Length 70mm; Pressure range 0…6bar; Actuator AUMA SA07.6

Intrastat No.: 84818061
Country of origin: Spain
Weight: 55.0 Kg
Short Itemnumber: AB1EM2I25250
https://www.stasto.hu/web/image/product.template/179932/image_1920?unique=40a2a6f

knife gate valve with electric actuator series AB1EM2H2-5-B; wafer type; rising stem; body AISI 316; gate AISI 316; soft sealed EPDM; packing PTFE-synthetic/EPDM; nominal flange pressure PN10; sealed in both directions; voltage 400V/3/50Hz; medium temperature -5...+90°C; DN 250mm; length 70mm; pressure range 0…6bar; actuator AUMA SA07.6

999.999,00 € 999999.0 EUR 999.999,00 €

On request

  • DN
  • Length
  • Operating pressure
  • Actuator

This combination does not exist.

Availability:
See availability
Contact Us

Technical specifications

Pressure range 0…6bar
DN 250 mm
Length 70 mm
Operating pressure 0...5 bar
Pressure range 0…6bar
DN 250 mm
Length 70 mm
Operating pressure 0...5 bar
No spare parts are available for this product.
