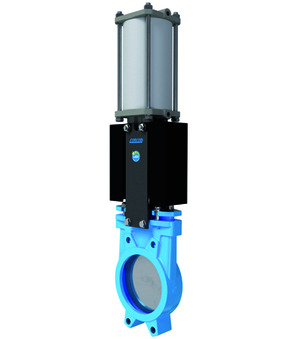

Knife gate valve with double acting actuator AB1N2H2-5-100-PI-B

Knife gate valve with double acting actuator AB1N2H2-5-100-PI-B

Knife gate valve with double acting actuator Series AB1N; Wafer type; Body Cast iron EN-GJL-250; Gate 1.4301; Packing PTFE-Synthetic/EPDM; Screws Stainless steel; Nominal flange pressure PN10; Sealed in both directions; Control pressure 5,5...8bar; Prepared for 2 inductive limit switches M18; Soft sealed EPDM; DN 100mm; Length 50mm; Pressure range 0...10bar; Temperature range -5...+90°C

Intrastat No.: 84818061
Country of origin: Spain Made in Europe
Weight: 12.0 Kg
Short Itemnumber: AB1N2H25100PIB
https://www.stasto.hu/web/image/product.template/86271/image_1920?unique=10a1298

Knife gate valve with double acting actuator Series AB1N; Wafer type; Body Cast iron EN-GJL-250; Gate 1.4301; Packing PTFE-Synthetic/EPDM; Screws Stainless steel; Nominal flange pressure PN10; Sealed in both directions; Control pressure 5,5...8bar; Prepared for 2 inductive limit switches M18; Soft sealed EPDM; DN 100mm; Length 50mm; Pressure range 0...10bar; Temperature range -5...+90°C

999.999,00 € 999999.0 EUR 999.999,00 €

On request

  • Connection
  • DN
  • Length
  • Cable length
  • Function
  • Actuation
  • Connector size
  • Design
  • Voltage
  • Pressure range
  • Soft sealed
  • Switch design
  • Coil
  • Flow rate
  • Medium temperature
  • Suitable silencer

This combination does not exist.

Availability:
See availability
Contact Us

Technical specifications

Pressure range 0...10 bar
Soft sealed EPDM
DN 100 mm
Length 50 mm
All specifications (5)
Pressure range 0...10 bar
Soft sealed EPDM
DN 100 mm
Length 50 mm
Medium temperature -5...+90 °C
No spare parts are available for this product.
