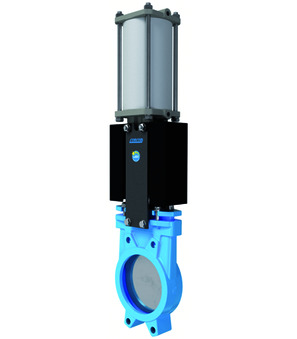

Knife gate valve with double acting actuator AB1N2H2-5-50-PIB

Knife gate valve with double acting actuator AB1N2H2-5-50-PIB

Knife gate valve with double acting actuator Series AB1N; Wafer type; Body Cast iron EN-GJL-250; Gate 1.4301; Packing PTFE-Synthetic/EPDM; Screws Stainless steel; Nominal flange pressure PN10; Sealed in both directions; Control pressure 5,5...8bar; Prepared for 2 inductive limit switches M18; Soft sealed EPDM; DN 50mm; Length 40mm; Pressure range 0...10bar; Temperature range -5...+90°C

Intrastat No.: 84818061
Country of origin: Spain Made in Europe
Weight: 7.45 Kg
Short Itemnumber: AB1N2H2550PIB
https://www.stasto.hu/web/image/product.template/132814/image_1920?unique=b474c66

knife gate valve with double acting actuator series AB1N; wafer type; body cast iron EN-GJL-250; gate AISI 304; packing PTFE-synthetic/EPDM; screws stainless steel; nominal flange pressure PN10; sealed in both directions; control pressure 5,5...8bar; prepared for 2 inductive limit switches M18; soft sealed EPDM; DN 50mm; length 40mm; pressure range 0...10bar; temperature range -5...+90°C

999.999,00 € 999999.0 EUR 999.999,00 €

On request

  • Connection
  • DN
  • Length
  • Cable length
  • Function
  • Actuation
  • Connector size
  • Design
  • Voltage
  • Pressure range
  • Soft sealed
  • Switch design
  • Coil
  • Flow rate
  • Medium temperature
  • Suitable silencer

This combination does not exist.

Availability:
See availability
Contact Us

Technical specifications

Pressure range 0...10 bar
Soft sealed EPDM
DN 50 mm
Length 40 mm
All specifications (5)
Pressure range 0...10 bar
Soft sealed EPDM
DN 50 mm
Length 40 mm
Medium temperature -5...+90 °C
PI-PC500-80 x 1.0 Pcs
PI-PC500-80
Piston; Suitable for Pneumatic cylinder For knife gate valve Series A, AB, AD, F, L And U; NBR; Piston diameter 80mm
SK-PC500-80
SK-PC500-80 x 1.0 Pcs
SK-PC500-80
Seal kit; Suitable for Pneumatic cylinder For knife gate valve Series A, AB, AD, F, L And U; NBR; Without piston; Piston diameter 80mm
Spare cylinder PC500-80-50
PC500-80-50 x 1.0 Pcs
Spare cylinder PC500-80-50
Spare cylinder; Suitable for Knife gate valve Series A, AB, AD, F, L And U; DN 50mm; Piston diameter 80mm
SS-AB1N2H2-5-50 x 1.0 Pcs
SS-AB1N2H2-5-50
Seat seal for AB1N2H2-5-50; EPDM
FS-AB1N2H2-5-50 x 1.0 Pcs
FS-AB1N2H2-5-50
Flange seal for AB1N2H2-5-50; EPDM; Scope of supply: 2 Pieces
PS-AB1N2H2-5-50 x 1.0 Pcs
PS-AB1N2H2-5-50
Packing; Suitable for Knife gate valve Series AB; DN 50mm; Material Synthetic PTFE/EPDM
PR-PC500-80-50
PR-PC500-80-50 x 1.0 Pcs
PR-PC500-80-50
Piston-rod; Suitable for Pneumatic cylinder For knife gate valve Series A, AB, AD, F, L And U; DN 50mm; Piston diameter 80mm
