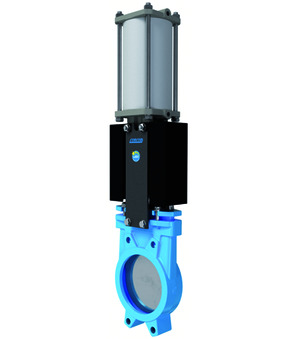

knife gate valve with double acting actuator series AB1N; wafer type; body cast iron EN-GJL-250/ductile iron EN-GJS-500-7; gate AISI 304; soft sealed NBR; packing PTFE-synthetic/EPDM; screws stainless steel; nominal flange pressure PN10; sealed in both directions; control pressure 5,5...8bar; medium temperature -20...+90°C; DN 300mm; length 70mm; pressure range 0...5bar
Country of origin: Spain
Short Itemnumber: AB1N2H55300B
knife gate valve with double acting actuator series AB1N; wafer type; body cast iron EN-GJL-250/ductile iron EN-GJS-500-7; gate AISI 304; soft sealed NBR; packing PTFE-synthetic/EPDM; screws stainless steel; nominal flange pressure PN10; sealed in both directions; control pressure 5,5...8bar; medium temperature -20...+90°C; DN 300mm; length 70mm; pressure range 0...5bar
Technical specifications
| Pressure range | 0...5 bar |
|---|---|
| DN | 300 mm |
| Length | 70 mm |
| Pressure range | 0...5 bar |
| DN | 300 mm |
| Length | 70 mm |
AB1N2H5-5-300-B
Documents
German / Deutsch
Data Sheets
1-
PDF
Datenblatt · Plattenschieber mit doppeltwirkendem Pneumatikantrieb Serie AB1N · DE
Data sheet 15,2 MB Updated 13/06/2026
English
Data Sheets
1-
PDF
Data sheet · Knife gate valve with double acting actuator Series AB1N · EN
Data sheet 11,2 MB Updated 13/06/2026
