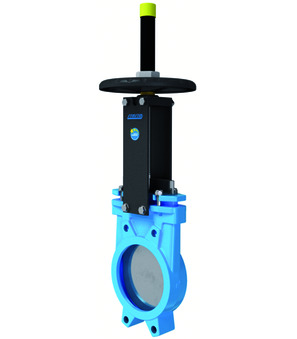

Knife gate valve with handwheel Series AB1V; Wafer type; Rising stem; Body Cast iron EN-GJL-250; Gate 1.4401; Soft sealed EPDM; Packing PTFE-Synthetic; Screws Stainless steel; Nominal flange pressure PN10; Sealed in both directions; Medium temperature -5...+90°C; DN 200mm; Length 60mm; Pressure range 0…10bar
Intrastat No.: 84818061
Country of origin: Spain
Short Itemnumber: AB1V2HS25200B
Country of origin: Spain
Short Itemnumber: AB1V2HS25200B
knife gate valve with handwheel series AB1V; wafer type; rising stem; body cast iron EN-GJL-250; gate AISI 316; soft sealed EPDM; packing PTFE-synthetic; screws stainless steel; nominal flange pressure PN10; sealed in both directions; medium temperature -5...+90°C; DN 200mm; length 60mm; pressure range 0…10bar
Technical specifications
| Pressure range | 0...10 bar |
|---|---|
| DN | 200 mm |
| Length | 60 mm |
| Pressure range | 0...10 bar |
| DN | 200 mm |
| Length | 60 mm |
No spare parts are available for this product.
