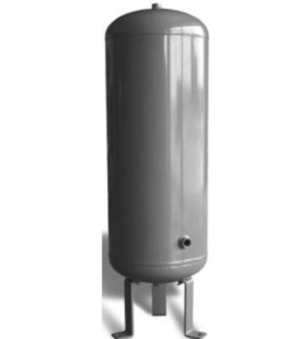

compressed air tank series AT04; housing steel painted; mounting position standing; according to 2014/68 EU; colour RAL5015; operating pressure max. 12bar; capacity 1000l; air pressure connection 2"
Intrastat No.: 73110099
Country of origin: Italy
Weight: 202.5 Kg
Short Itemnumber: AT04100012
Country of origin: Italy
Weight: 202.5 Kg
Short Itemnumber: AT04100012
compressed air tank series AT04; housing steel painted; mounting position standing; according to 2014/68 EU; colour RAL5015; operating pressure max. 12bar; capacity 1000l; air pressure connection 2"
Technical specifications
| Colour | RAL5015 |
|---|---|
| Operating pressure | Max. 12 bar |
| Capacity | 1000 l |
| Air pressure connection | 2" |
| Colour | RAL5015 |
| Operating pressure | Max. 12 bar |
| Capacity | 1000 l |
| Air pressure connection | 2" |
AT04-1000-12
Documents
English
Data Sheets
1-
PDF
Data sheet · Compressed air tank Series AT04 · EN
Data sheet 845 KB Updated 13/06/2026
No spare parts are available for this product.
