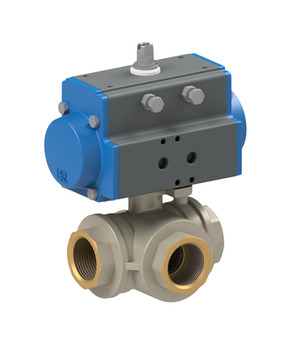

BA010-14-3D0

Name: BA010-14-3D0
Brand: STASTO
SKU: BA010-14-3D0
Price: 247.9 EUR
Availability: InStock

Ball valve with pneumatic actuator Series BA009, BA010; 3-way-type; Sealing on three ports; Body, Ball Brass; Seals PTFE/FKM/EPDM; Double acting actuator; Control pressure 5,5...8bar; Medium temperature -20...+160°C; RP 1/4"; Nominal diameter 8mm; Pressure range 0-30bar; Length 67mm; Actuator PAD032; Ball T; Flow path 03

Intrastat No.: 84818081
Country of origin: Italy
Weight: 1.04 Kg
Short Itemnumber: BA010143D0

ball valve with pneumatic actuator series BA009, BA010; 3-way-type; sealing on three ports; body, ball brass; seals PTFE/FKM/EPDM; double acting actuator; control pressure 5,5...8bar; medium temperature -20...+160°C; RP 1/4"; nominal diameter 8mm; pressure range 0-30bar; length 67mm; actuator PAD032; ball T; flow path 03

247,90 € 247.9 EUR 247,90 €

Female thread
- RP 1/4"
DN
- 8 mm
Length
- 67 mm
Ball
- T
Pressure range
- 0...30 bar
Actuator
- PAD032

This combination does not exist.

Availability:

Add to cart

Specifications
Spare Parts

dimension
Female thread	RP 1/4"
DN	8 mm
Length	67 mm
Designs
Ball	T
pressure
Pressure range	0...30 bar
characteristics
Actuator	PAD032

3500-1/4" x 1.0

Ball valve made of brass 3500-1/4"

Ball valve made of brass Series 3600, 3500; 3-way-type; Sealing on three ports; Female thread; Seals PTFE/FKM/EPDM; Medium temperature -20...+160°C; Hand lever Steel; RP 1/4"; Nominal diameter 8mm; Pressure range 0-30bar; Length 67mm; Ball T

Add to Cart

PAD032 x 1.0

Pneumatic actuator PAD032

Pneumatic actuator Series PAD; ATEX II 2 G/D; Double acting; Rotation angle 90°; According to ISO 5211/NAMUR; Operating pressure range Max. 8bar; Diameter 32mm; Flange ISO5211 F03; Female square 9mm; Torque at 5,5bar 8Nm
