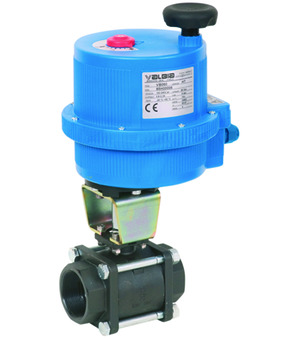

Ball valve with electrical actuator BA028-10-CH

Ball valve with electrical actuator BA028-10-CH

Ball valve with electrical actuator Series 8E004; Female thread; Body Steel; Ball 1.4301; Seals PTFE/FKM; Medium temperature -10...+160°C; Incl. Positioner 4-20mA/0-10V; RP 1"; DN 25mm; Pressure range 0...40bar; Length 92mm; Operating time 8s; Voltage 100-240VAC

Intrastat No.: 84818081
Country of origin: Italy
Weight: 3.8 Kg
Short Itemnumber: BA02810CH
https://www.stasto.hu/web/image/product.template/136212/image_1920?unique=5dc8479

ball valve with electrical actuator series 8E004; female thread; body steel; ball AISI 304; seals PTFE/FKM; medium temperature -10...+160°C; incl. positioner 4-20mA/0-10V; RP 1"; DN 25mm; pressure range 0...40bar; length 92mm; operating time 8s; voltage 100-240VAC

1.048,50 € 1048.5 EUR 1.048,50 €

ár kérésre

excl. tax
  • Female thread
  • DN
  • Length
  • Voltage
  • Pressure range
  • Operating time

This combination does not exist.

Availability:
See availability
Contact Us

Technical specifications

Pressure range 0...40 bar
Female thread RP 1"
DN 25 mm
Length 92 mm
All specifications (6)
Pressure range 0...40 bar
Female thread RP 1"
DN 25 mm
Length 92 mm
Operating time 8 s
Voltage 100-240VAC
Ball valve made of steel 713000-1"
713000-1" x 1.0 Pcs
Ball valve made of steel 713000-1"
Ball valve made of steel Series 713000; Full bore; Three-parts type; Female thread; Body Steel; Ball 1.4301; Seals PTFE/FKM; Medium temperature -10...+160°C; RP 1"; Nominal diameter 25mm; Pressure range 0-40bar; Length 92mm
Electrical actuator VB030-H-P0S
VB030-H-P0S x 1.0 Pcs
Electrical actuator VB030-H-P0S
Electrical actuator Series VB; Suitable for Valves with 90° operation; For a maximum of 100 operations a day; Limit switch-off is wired; 2 potential-free contacts for end position feedback; Incl. manual emergency override; Incl. Positioner 4-20mA/0-10V; Torque 30Nm; Operating time 8s; Flange ISO5211 F03/F05-Stern 11 mm; Voltage 100-240VAC; Protection class IP67
RI3030 x 1.0 Pcs
RI3030
Mounting bracket; F05/F03-F04,11-8
