Ball valve with electrical actuator BA028-20-0L-01
Ball valve with electrical actuator BA028-10-0L-01
Ball valve with electrical actuator BA028-10-0L-01
1.374,50 €
1.374,50 €
SK-CVT-20-NC-004
SK-CVT-20-NC-004
169,10 €
169,10 €

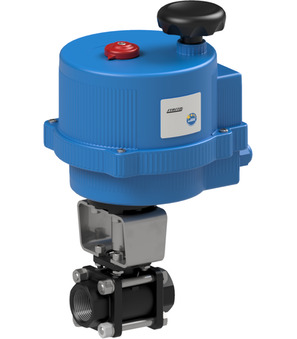

Ball valve with electrical actuator BA028-20-0L-01

Ball valve with electrical actuator; Female thread; Body Steel; Ball 1.4301; Seals PTFE/FKM; Medium temperature -10...+160°C; RP 2"; DN 50mm; Pressure range 0-25bar; Length 136mm; Control ball V 30...60°; Operating time 119s; Voltage 15-30V/50-60Hz, 12-48VDC

Intrastat No.: 84818081
Country of origin: France
Short Itemnumber:BA028200L01
https://www.stasto.hu/web/image/product.template/202406/image_1920?unique=a0dcc71

ball valve with electrical actuator; female thread; body steel; ball AISI 304; seals PTFE/FKM; medium temperature -10...+160°C; RP 2"; DN 50mm; pressure range 0-25bar; length 136mm; Control ball V 30...60°; operating time 119s; voltage 15-30V/50-60Hz, 12-48VDC

1.449,10 € 1449.1 EUR 1.449,10 €

ár kérésre

  • Female thread
  • DN
  • Length
  • Voltage
  • Pressure range
  • Actuator
  • Operating time

This combination does not exist.

Availability:
Contact Us
dimension
Female thread RP 2"
DN 50 mm
Length 136 mm
Electrical key figures
Voltage 24VAC/DC
pressure
Pressure range 0...25 bar
characteristics
Actuator VB060L
Operating time 9 s
Ball valve made of steel BA028-20-L-02
BA028-20-L-02 x 1.0
Ball valve made of steel BA028-20-L-02
Ball valve made of steel; Full bore; Three-parts type; Female thread; Body Steel; Ball 1.4301; Seals PTFE/FKM; Medium temperature -10...+160°C; RP 2"; Nominal diameter 50mm; Pressure range 0-25bar; Length 136mm; Control ball V 30...60°
Add to Cart
ER100-0N119-Q22 x 1.0
Electrical actuator ER100-0N119-Q22
Electrical actuator Series ER; Suitable for Valves with 90° operation; For a maximum of 100 operations a day; Limit switch-off is wired; 2 potential-free contacts for end position feedback; Incl. manual emergency override; Protection class IP66; Torque 100Nm; Operating time 119s; Flange ISO5211 F05/F07-Stern 22mm; Voltage 15-30V/50-60Hz, 12-48VDC
Add to Cart
Accessories
