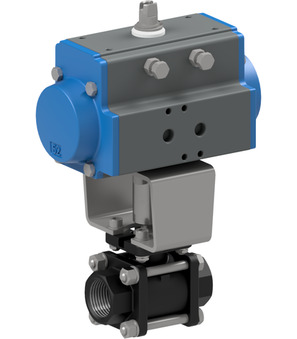

Ball valve with pneumatic actuator BA028-34-D0-A

Ball valve with pneumatic actuator BA028-34-D0-A

Ball valve with pneumatic actuator Series BA028-A; ATEX II 2 G/D; Female thread; Body Steel; Ball 1.4301; Seals PTFE/FKM; Double acting actuator ATEX II 2 G/D c T6; Control pressure 5,5...8bar; Medium temperature -10...+160°C; RP 3/4"; Nominal diameter 20mm; Pressure range 0...40bar; Length 76mm; Actuator PAD052

Intrastat No.: 84818081
Country of origin: Italy Made in Europe
Weight: 2.13 Kg
Short Itemnumber: BA02834D0A
https://www.stasto.hu/web/image/product.template/160799/image_1920?unique=bcfc56d

ball valve with pneumatic actuator series BA028-A; ATEX II 2 G/D; female thread; body steel; ball AISI 304; seals PTFE/FKM; double acting actuator ATEX II 2 G/D c T6; control pressure 5,5...8bar; medium temperature -10...+160°C; RP 3/4"; nominal diameter 20mm; pressure range 0...40bar; length 76mm; actuator PAD052

999.999,00 € 999999.0 EUR 999.999,00 €

On request

  • Female thread
  • DN
  • Length
  • Design
  • Pressure range
  • Actuator

This combination does not exist.

Availability:
See availability
Contact Us

Technical specifications

Pressure range 0...40 bar
Female thread RP 3/4"
DN 20 mm
Length 76 mm
All specifications (5)
Pressure range 0...40 bar
Female thread RP 3/4"
DN 20 mm
Length 76 mm
Design ATEX
Ball valve made of steel 3/4"-20-0...40-76
BA028-34-L-A x 1.0 Pcs
Ball valve made of steel 3/4"-20-0...40-76
Ball valve made of steel Series BA028-L-A; ATEX II 2 G/D; Full bore; Three-parts type; Female thread; Body Steel; Ball 1.4301; Seals PTFE/FKM; Medium temperature -10...+160°C; RP 3/4"; Nominal diameter 20mm; Pressure range 0...40bar; Length 76mm
Pneumatic actuator PAD052
PAD052 x 1.0 Pcs
Pneumatic actuator PAD052
Pneumatic actuator Series PAD; ATEX II 2 G/D; Double acting; Rotation angle 90°; According to ISO 5211/NAMUR; Operating pressure range Max. 8bar; Diameter 52mm; Flange ISO5211 F03/F05; Female square 11mm; Torque at 5,5bar 20Nm
RI3781 x 1.0 Pcs
RI3781
Mounting bracket; F05/F03-F04; Bolt 11-7
