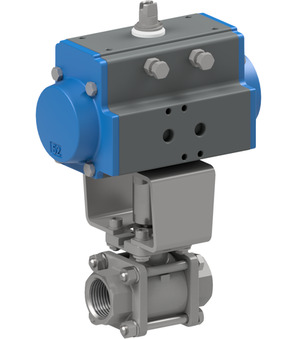

Ball valve with pneumatic actuator BA033-10-D0-03

Ball valve with pneumatic actuator BA033-10-D0-03

Ball valve with pneumatic actuator; Female thread; Body, Ball 1.4401; Seals PTFE/FKM; Double acting actuator; Control pressure 5,5...8bar; Medium temperature -20...+160°C; RP 1"; Nominal diameter 25mm; Pressure range 0-40bar; Length 92mm; Actuator PAD063; Mounting kits Stainless steel

Intrastat No.: 84818081
Country of origin: Italy
Weight: 3.43 Kg
Short Itemnumber: BA03310D003
https://www.stasto.hu/web/image/product.template/185259/image_1920?unique=d06ecb6

ball valve with pneumatic actuator; female thread; body, ball AISI 316; seals PTFE/FKM; double acting actuator; control pressure 5,5...8bar; medium temperature -20...+160°C; RP 1"; nominal diameter 25mm; pressure range 0-40bar; length 92mm; actuator PAD063; mounting kits stainless steel

523,60 € 523.6 EUR 523,60 €

ár kérésre

excl. tax
  • Valve interface Namur
  • Female thread
  • DN
  • Length
  • Connector size
  • Design
  • Voltage
  • Pressure range
  • Coil
  • Actuator

This combination does not exist.

Availability:
See availability
Contact Us

Technical specifications

Pressure range 0...40 bar
Female thread RP 1"
DN 25 mm
Length 92 mm
Documents
Data sheets, drawings and CAD files
Pressure range 0...40 bar
Female thread RP 1"
DN 25 mm
Length 92 mm

BA033-10-D0-03

Documents

1 Documents 18 Languages

Czech / Čeština
ZIP

Data Sheets

1
Danish / Dansk
ZIP

Data Sheets

1
German / Deutsch
ZIP

Data Sheets

1
Greek / Ελληνικά
ZIP

Data Sheets

1
English
ZIP

Data Sheets

1
Spanish / Español
ZIP

Data Sheets

1
Finnish / Suomi
ZIP

Data Sheets

1
French / Français
ZIP

Data Sheets

1
Croatian / hrvatski jezik
ZIP

Data Sheets

1
Hungarian / Magyar
ZIP

Data Sheets

1
Italian / Italiano
ZIP

Data Sheets

1
Norwegian Bokmål / Norsk bokmål
ZIP

Data Sheets

1
Dutch / Nederlands
ZIP

Data Sheets

1
Polish / Język polski
ZIP

Data Sheets

1
Romanian / română
ZIP

Data Sheets

1
Slovenian / slovenščina
ZIP

Data Sheets

1
Serbian (Latin) / srpski
ZIP

Data Sheets

1
Swedish / Svenska
ZIP

Data Sheets

1
Ball valve made of stainless steel 710000-1"
710000-1" x 1.0 Pcs
Ball valve made of stainless steel 710000-1"
Ball valve made of stainless steel Series 710000; Full bore; Three-parts type; Female thread; Body, Ball 1.4401; Seals PTFE/FKM; Medium temperature -20...+160°C; RP 1"; Nominal diameter 25mm; Pressure range 0-40bar; Length 92mm
Pneumatic actuator PAD063
PAD063 x 1.0 Pcs
Pneumatic actuator PAD063
Pneumatic actuator Series PAD; ATEX II 2 G/D; Double acting; Rotation angle 90°; According to ISO 5211/NAMUR; Operating pressure range Max. 8bar; Diameter 63mm; Flange ISO5211 F05/F07; Female square 14mm; Torque at 5,5bar 36Nm
ATE0504 x 1.0 Pcs
ATE0504
Mounting bridge; Material 1.4301; Flange 1 F05; Flange 2 F04; Height 60mm
IV/00127/15 x 1.0 Pcs
IV/00127/15
Bolt; 1.4305; Diameter 25mm; Height of the bolt 49mm; Male square 14mm; Height of the male square 14mm; Two flat 8mm; Two flat height 11,5mm
