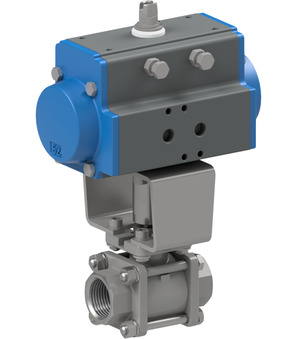

Ball valve with pneumatic actuator BA033-112-S0-A

Price.

750,00 €
Ball valve with pneumatic actuator Series BA033 Store
  1. Products
  2. Armatures
  3. Ball valves - automatically operated
  4. Other materiales - A03
  5. Ball valve with pneumatic actuator Series BA033
  6. BA033-112-S0-A
Ball valve with pneumatic actuator BA033-112-S0-A
Ball valve with pneumatic actuator BA033-114-S0-A-ABS53-C001-03-C002-31-LV-2
Ball valve with pneumatic actuator BA033-114-S0-A-ABS53-C001-03-C002-31-LV-2
663,28 €
663,28 €
ball valve with pneumatic actuator BA033-112-T0
ball valve with pneumatic actuator BA033-112-T0
701,01 €
701,01 €

Ball valve with pneumatic actuator BA033-112-S0-A

Ball valve with pneumatic actuator Series BA033; ATEX II 2 G/D; Female thread; Body, Ball 1.4401; Seals PTFE/FKM; Single acting actuator ATEX II 2 G/D c T6; Control pressure 5,5...8bar; Medium temperature -20...+160°C; RP 11/2"; Nominal diameter 40mm; Pressure range 0...25bar; Length 116mm; Actuator PAS0855

Intrastat No.: 84818081
Country of origin: Italy
Weight: 7.84 Kg
Short Itemnumber:BA033112S0A
https://www.stasto.hu/web/image/product.template/159714/image_1920?unique=07bf1b6

ball valve with pneumatic actuator series BA033; ATEX II 2 G/D; female thread; body, ball AISI 316; seals PTFE/FKM; single acting actuator ATEX II 2 G/D c T6; control pressure 5,5...8bar; medium temperature -20...+160°C; RP 11/2"; nominal diameter 40mm; pressure range 0...25bar; length 116mm; actuator PAS0855

750,00 € 750.0 EUR 750,00 €

ár kérésre

  • Attachment interface VDI/VDE 3845
  • Attachment interface 2 VDI/VDE 3845
  • Valve interface Namur
  • Female thread
  • DN
  • Length
  • Connector size
  • Switch type
  • Design
  • Voltage
  • Switching capacity
  • Pressure range
  • Contact material
  • Material of case
  • Coil
  • Actuator

This combination does not exist.

Availability:
Contact Us
dimension
Female thread RP 1 1/2"
DN 40 mm
Length 116 mm
design
Design ATEX
pressure
Pressure range 0...25 bar
characteristics
Actuator PAS0855
Ball valve made of stainless steel BA033-112-L-A
BA033-112-L-A x 1.0
Ball valve made of stainless steel BA033-112-L-A
Ball valve made of stainless steel Series BA033-A; ATEX II 2 G/D; TA-Luft; Full bore; Three-parts type; Female thread; Body, Ball 1.4401; Seals PTFE/FKM; Medium temperature -20...+160°C; RP 11/2"; Nominal diameter 40mm; Pressure range 0…25bar; Length 116mm
Add to Cart
Pneumatic actuator PAS0855
PAS0855 x 1.0
Pneumatic actuator PAS0855
Pneumatic actuator Series PAS; ATEX II 2 G/D; Single acting; Rotation angle 90°; According to ISO 5211/NAMUR; Operating pressure range Max. 8bar; Diameter 85mm; Flange ISO5211 F05/F07; Female square 17mm; Torque at 5,5bar 28,7Nm
