Ball valve with pneumatic actuator BA033-12-S0-A

Price.

373,50 €
Ball valve with pneumatic actuator Series BA033 Store
  1. Products
  2. Armatures
  3. Ball valves - automatically operated
  4. Other materiales - A03
  5. Ball valve with pneumatic actuator Series BA033
  6. BA033-12-S0-A
Ball valve with pneumatic actuator BA033-12-S0-A
Ball valve with pneumatic actuator BA033-38-S0-A
Ball valve with pneumatic actuator BA033-38-S0-A
370,50 €
370,50 €
BA033-12-S0-A-ABS51-EPC02400-10-1
BA033-12-S0-A-ABS51-EPC02400-10-1
ár kérésre

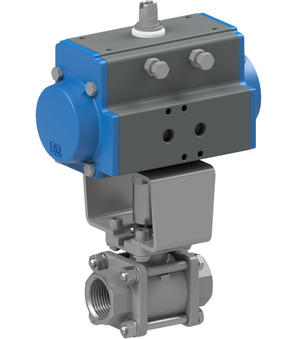

Ball valve with pneumatic actuator BA033-12-S0-A

Ball valve with pneumatic actuator Series BA033; ATEX II 2 G/D; Female thread; Body, Ball 1.4401; Seals PTFE/FKM; Single acting actuator ATEX II 2 G/D c T6; Control pressure 5,5...8bar; Medium temperature -20...+160°C; RP 1/2"; Nominal diameter 15mm; Pressure range 0…64bar; Length 65mm; Actuator PAS0525

Intrastat No.: 84818081
Country of origin: Italy
Weight: 1.883 Kg
Short Itemnumber:BA03312S0A
https://www.stasto.hu/web/image/product.template/153102/image_1920?unique=c748a34

ball valve with pneumatic actuator series BA033; ATEX II 2 G/D; female thread; body, ball AISI 316; seals PTFE/FKM; single acting actuator ATEX II 2 G/D c T6; control pressure 5,5...8bar; medium temperature -20...+160°C; RP 1/2"; nominal diameter 15mm; pressure range 0…64bar; length 65mm; actuator PAS0525

373,50 € 373.5 EUR 373,50 €

ár kérésre

  • Attachment interface VDI/VDE 3845
  • Attachment interface 2 VDI/VDE 3845
  • Valve interface Namur
  • Female thread
  • DN
  • Length
  • Connector size
  • Switch type
  • Design
  • Voltage
  • Switching capacity
  • Pressure range
  • Contact material
  • Material of case
  • Coil
  • Actuator

This combination does not exist.

Availability:
Contact Us
dimension
Female thread RP 1/2"
DN 15 mm
Length 65 mm
design
Design ATEX
pressure
Pressure range 0...64 bar
characteristics
Actuator PAS0525
Ball valve made of stainless steel BA033-12-L-A
BA033-12-L-A x 1.0
Ball valve made of stainless steel BA033-12-L-A
Ball valve made of stainless steel Series BA033-A; ATEX II 2 G/D; TA-Luft; Full bore; Three-parts type; Female thread; Body, Ball 1.4401; Seals PTFE/FKM; Medium temperature -20...+160°C; RP 1/2"; Nominal diameter 15mm; Pressure range 0...64bar; Length 65mm
Add to Cart
Pneumatic actuator PAS0525
PAS0525 x 1.0
Pneumatic actuator PAS0525
Pneumatic actuator Series PAS; ATEX II 2 G/D; Single acting; Rotation angle 90°; According to ISO 5211/NAMUR; Operating pressure range Max. 8bar; Diameter 52mm; Flange ISO5211 F03/F05; Female square 11mm; Torque at 5,5bar 6,2Nm
