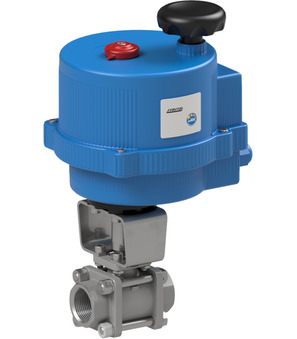

BA033-34-CH-01

Ball valve made of stainless steel Series 710000; Full bore; Three-parts type; Female thread; Body, Ball 1.4401; Seals PTFE/FKM; Medium temperature -20...+160°C; RP 3/4"; Nominal diameter 20mm; Pressure range 0-40bar; Length 76mm

Electrical actuator Series VB; Suitable for Valves with 90° operation; For a maximum of 100 operations a day; Limit switch-off is wired; 2 potential-free contacts for end position feedback; Incl. manual emergency override; Incl. Positioner 4-20mA/0-10V; Torque 30Nm; Operating time 8s; Flange ISO5211 F03/F05-Stern 11 mm; Voltage 100-240VAC; Protection class IP67

Mounting bracket; F05/F03-F04; Bolt 11-7
