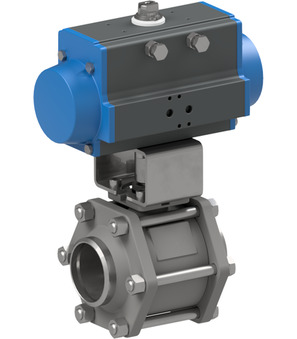

Ball valve with pneumatic actuator BA034-100-S0-A

Ball valve with pneumatic actuator BA034-100-S0-A

Ball valve with pneumatic actuator Series BA034-S0-A; ATEX II 2 G/D; TA-Luft; Butt weld ends; Body, Ball 1.4401; Seals PTFE-reinforced/FKM; Single acting actuator ATEX II 2G/D c T6; Control pressure 5,5...8bar; Medium temperature -20...+160°C; Nominal diameter 100mm; Pressure range 0...16bar; Length 217mm; Actuator PAS1255

Intrastat No.: 84818081
Country of origin: Italy Made in Europe
Weight: 37.35 Kg
Short Itemnumber: BA034100S0A
https://www.stasto.hu/web/image/product.template/151803/image_1920?unique=4e1cff3

ball valve with pneumatic actuator series BA034-S0-A; ATEX II 2 G/D; TA-Luft; butt weld ends; body, ball AISI 316; seals PTFE-reinforced/FKM; single acting actuator ATEX II 2G/D c T6; control pressure 5,5...8bar; medium temperature -20...+160°C; nominal diameter 100mm; pressure range 0...16bar; length 217mm; actuator PAS1255

999.999,00 € 999999.0 EUR 999.999,00 €

On request

  • Butt weld ends
  • Attachment interface VDI/VDE 3845
  • Attachment interface 2 VDI/VDE 3845
  • Valve interface Namur
  • DN
  • Length
  • Function
  • Connector size
  • Switch type
  • Design
  • Voltage
  • Switching capacity
  • Pressure range
  • Contact material
  • Material of case
  • Coil
  • Actuator

This combination does not exist.

Availability:
See availability
Contact Us

Technical specifications

Pressure range 0...16 bar
DN 100 mm
Length 217 mm
Design ATEX
Documents
Data sheets, drawings and CAD files
Pressure range 0...16 bar
DN 100 mm
Length 217 mm
Design ATEX

BA034-100-S0-A

Documents

1 Documents 3 Languages

German / Deutsch
ZIP

Data Sheets

1
English
ZIP

Data Sheets

1
Serbian (Latin) / srpski
ZIP

Data Sheets

1
Ball valve made of stainless steel BA034-100-L-A
BA034-100-L-A x 1.0 Pcs
Ball valve made of stainless steel BA034-100-L-A
Ball valve made of stainless steel Series BA034-L-A; ATEX II 2 G/D; TA-Luft; Full bore; Three-parts type; Butt weld ends; Body, Ball 1.4401; Seals PTFE-reinforced/FKM; Medium temperature -20...+160°C; Nominal diameter 100mm; Pressure range 0...16bar; Length 217mm
Pneumatic actuator PAS1255
PAS1255 x 1.0 Pcs
Pneumatic actuator PAS1255
Pneumatic actuator Series PAS; ATEX II 2 G/D; Single acting; Rotation angle 90°; According to ISO 5211/NAMUR; Operating pressure range Max. 8bar; Diameter 125mm; Flange ISO5211 F07/F10; Female square 22mm; Torque at 5,5bar 88,1Nm
RI3005 x 1.0 Pcs
RI3005
Mounting bracket For Ball valve; F10-F10/F07; Bolt 22-18
