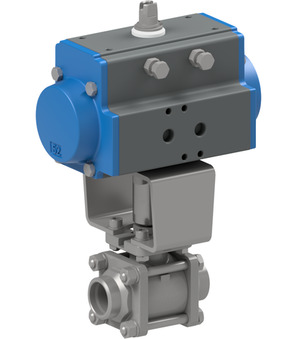

Ball valve with pneumatic actuator BA034-25-D0-A

Ball valve with pneumatic actuator BA034-25-D0-A

Ball valve with pneumatic actuator Series BA034-D0-A; ATEX II 2 G/D; TA-Luft; Butt weld ends; Body, Ball 1.4401; Seals PTFE-reinforced/FKM; Double acting actuator ATEX II 2G/D c T6; Control pressure 5,5...8bar; Medium temperature -20...+160°C; Nominal diameter 25mm; Pressure range 0...40bar; Length 92mm; Actuator PAD052

Intrastat No.: 84818081
Country of origin: Italy Made in Europe
Weight: 2.7 Kg
Short Itemnumber: BA03425D0A
https://www.stasto.hu/web/image/product.template/178988/image_1920?unique=bf9ff56

ball valve with pneumatic actuator series BA034-D0-A; ATEX II 2 G/D; TA-Luft; butt weld ends; body, ball AISI 316; seals PTFE-reinforced/FKM; double acting actuator ATEX II 2G/D c T6; control pressure 5,5...8bar; medium temperature -20...+160°C; nominal diameter 25mm; pressure range 0...40bar; length 92mm; actuator PAD052

510,80 € 510.8 EUR 510,80 €

ár kérésre

excl. tax
  • Butt weld ends
  • Attachment interface VDI/VDE 3845
  • Attachment interface 2 VDI/VDE 3845
  • Valve interface Namur
  • DN
  • Length
  • Function
  • Connector size
  • Switch type
  • Design
  • Voltage
  • Switching capacity
  • Pressure range
  • Contact material
  • Material of case
  • Coil
  • Actuator

This combination does not exist.

Availability:
See availability
Contact Us

Technical specifications

Pressure range 0...40 bar
DN 25 mm
Length 92 mm
Design ATEX
Documents
Data sheets, drawings and CAD files
Pressure range 0...40 bar
DN 25 mm
Length 92 mm
Design ATEX

BA034-25-D0-A

Documents

1 Documents 3 Languages

German / Deutsch
ZIP

Data Sheets

1
English
ZIP

Data Sheets

1
Serbian (Latin) / srpski
ZIP

Data Sheets

1
Ball valve made of stainless steel BA034-25-L-A
BA034-25-L-A x 1.0 Pcs
Ball valve made of stainless steel BA034-25-L-A
Ball valve made of stainless steel Series BA034-L-A; ATEX II 2 G/D; TA-Luft; Full bore; Three-parts type; Butt weld ends; Body, Ball 1.4401; Seals PTFE-reinforced/FKM; Medium temperature -20...+160°C; Nominal diameter 25mm; Pressure range 0...40bar; Length 92mm
Pneumatic actuator PAD052
PAD052 x 1.0 Pcs
Pneumatic actuator PAD052
Pneumatic actuator Series PAD; ATEX II 2 G/D; Double acting; Rotation angle 90°; According to ISO 5211/NAMUR; Operating pressure range Max. 8bar; Diameter 52mm; Flange ISO5211 F03/F05; Female square 11mm; Torque at 5,5bar 20Nm
RI3030 x 1.0 Pcs
RI3030
Mounting bracket; F05/F03-F04,11-8
