ball valve with pneumatic actuator BA034-32-D0-A
Ball valve with pneumatic actuator BA034-25-S0-A
Ball valve with pneumatic actuator BA034-25-S0-A
525,70 €
525,70 €
Ball valve with pneumatic actuator BA034-32-S0-3C
Ball valve with pneumatic actuator BA034-32-S0-3C
518,76 €
518,76 €

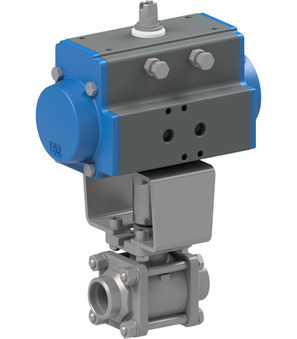

ball valve with pneumatic actuator BA034-32-D0-A

ball valve with pneumatic actuator series BA034-S0-A; ATEX II 2 G/D; TA-Luft; butt weld ends; body, ball AISI 316; seals PTFE-reinforced/FKM; double acting actuator ATEX II 2G/D c T6; control pressure 5,5...8bar; medium temperature -20...+160°C; nominal diameter 32mm; pressure range 0...25bar; length 106mm; actuator PAD052

Intrastat No.: 84818081
Country of origin: Italy
Weight: 3.18 Kg
Short Itemnumber:BA03432D0A
https://www.stasto.hu/web/image/product.template/237032/image_1920?unique=e61bf75

ball valve with pneumatic actuator series BA034-S0-A; ATEX II 2 G/D; TA-Luft; butt weld ends; body, ball AISI 316; seals PTFE-reinforced/FKM; double acting actuator ATEX II 2G/D c T6; control pressure 5,5...8bar; medium temperature -20...+160°C; nominal diameter 32mm; pressure range 0...25bar; length 106mm; actuator PAD052

468,88 € 468.88 EUR 468,88 €

ár kérésre

  • Attachment interface VDI/VDE 3845
  • Attachment interface 2 VDI/VDE 3845
  • Valve interface Namur
  • DN
  • Length
  • Function
  • Connector size
  • Switch type
  • Design
  • Voltage
  • Switching capacity
  • Pressure range
  • Contact material
  • Material of case
  • Coil
  • Actuator

This combination does not exist.

Availability:
Contact Us
dimension
DN 32 mm
Length 106 mm
design
Design ATEX
pressure
Pressure range 0...25 bar
characteristics
Actuator PAS0635

Data sheets, Instructions, 3D-files and Certificates...

In your language
ZIP
Data Sheets
1
Data sheet_Ball valve with pneumatic actuator Series BA034-S0-A_EN.pdf
Download

ZIP
Datenblätter
1
Datenblatt_Kugelhahn mit Druckluftdrehantrieb Serie BA034-S0-A_DE.pdf
Download

ZIP
Data Sheets
1
Tehnički list_kuglasti ventil sa pneumatskim aktuatorom serije BA034-S0-A_SRLATIN.pdf
Download
Ball valve made of stainless steel BA034-32-L-A
BA034-32-L-A x 1.0
Ball valve made of stainless steel BA034-32-L-A
Ball valve made of stainless steel Series BA034-L-A; ATEX II 2 G/D; TA-Luft; Full bore; Three-parts type; Butt weld ends; Body, Ball 1.4401; Seals PTFE-reinforced/FKM; Medium temperature -20...+160°C; Nominal diameter 32mm; Pressure range 0...25bar; Length 106mm
Add to Cart
Pneumatic actuator PAD052
PAD052 x 1.0
Pneumatic actuator PAD052
Pneumatic actuator Series PAD; ATEX II 2 G/D; Double acting; Rotation angle 90°; According to ISO 5211/NAMUR; Operating pressure range Max. 8bar; Diameter 52mm; Flange ISO5211 F03/F05; Female square 11mm; Torque at 5,5bar 20Nm
Add to Cart
