BA034-32-S2

BA034-32-S2

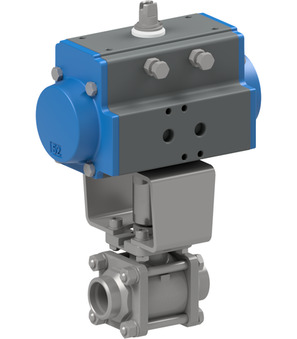

Ball valve with pneumatic actuator; Butt weld ends; Body, Ball 1.4401; Seals PTFE-reinforced/FKM; Single acting actuator; Control pressure 4...8bar; Medium temperature -20...+160°C; Nominal diameter 32mm; Pressure range 0-25bar; Length 106mm; Actuator PAS1003

Intrastat No.: 84818081
Country of origin: Italy
Weight: 9.22 Kg
Short Itemnumber: BA03432S2
https://www.stasto.hu/web/image/product.template/142651/image_1920?unique=6fa857b

ball valve with pneumatic actuator; butt weld ends; body, ball AISI 316; seals PTFE-reinforced/FKM; single acting actuator; control pressure 4...8bar; medium temperature -20...+160°C; nominal diameter 32mm; pressure range 0-25bar; length 106mm; actuator PAS1003

691,30 € 691.3 EUR 691,30 €

ár kérésre

excl. tax
  • Brand

This combination does not exist.

Availability:
See availability
Contact Us

Technical specifications

Pressure range 0-25bar
Brand STASTO
Pressure range 0-25bar
Brand STASTO
Ball valve made of stainless steel 712000-32
712000-32 x 1.0 Pcs
Ball valve made of stainless steel 712000-32
Ball valve made of stainless steel Series 712000; Full bore; Three-parts type; Butt weld ends; Body, Ball 1.4401; Seals PTFE-reinforced/FKM; Medium temperature -20...+160°C; Nominal diameter 32mm; Pressure range 0-25bar; Length 106mm
Pneumatic actuator PAS1003
PAS1003 x 1.0 Pcs
Pneumatic actuator PAS1003
Pneumatic actuator Series PAS; ATEX II 2 G/D; Single acting; Rotation angle 90°; According to ISO 5211/NAMUR; Operating pressure range Max. 8bar; Diameter 100mm; Flange ISO5211 F07/F10; Female square 17mm; Torque at 5,5bar 35,9Nm
ATSV0704 x 1.0 Pcs
ATSV0704
Mounting bridge; Material Zinc plated steel; Flange 1 F07; Flange 2 F04; Height 60mm
