BA034-40-S2

BA034-40-S2

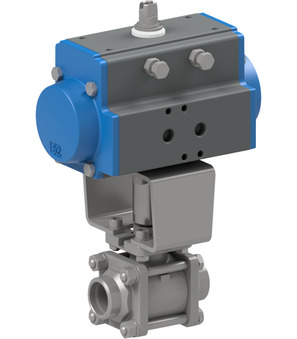

Ball valve with pneumatic actuator; Butt weld ends; Body, Ball 1.4401; Seals PTFE-reinforced/FKM; Single acting actuator; Control pressure 4...8bar; Medium temperature -20...+160°C; Nominal diameter 40mm; Pressure range 0-25bar; Length 116mm; Actuator PAS1155

Intrastat No.: 84818081
Country of origin: Italy
Weight: 14.56 Kg
Short Itemnumber: BA03440S2
https://www.stasto.hu/web/image/product.template/162696/image_1920?unique=3970b0b

ball valve with pneumatic actuator; butt weld ends; body, ball AISI 316; seals PTFE-reinforced/FKM; single acting actuator; control pressure 4...8bar; medium temperature -20...+160°C; nominal diameter 40mm; pressure range 0-25bar; length 116mm; actuator PAS1155

956,50 € 956.5 EUR 956,50 €

ár kérésre

    This combination does not exist.

    Availability:
    Contact Us

    Share

    No Specifications
    Ball valve made of stainless steel 712000-40
    712000-40 x 1.0
    Ball valve made of stainless steel 712000-40
    Ball valve made of stainless steel Series 712000; Full bore; Three-parts type; Butt weld ends; Body, Ball 1.4401; Seals PTFE-reinforced/FKM; Medium temperature -20...+160°C; Nominal diameter 40mm; Pressure range 0-25bar; Length 116mm
    Add to Cart
    Pneumatic actuator PAS1153
    PAS1153 x 1.0
    Pneumatic actuator PAS1153
    Pneumatic actuator Series PAS; ATEX II 2 G/D; Single acting; Rotation angle 90°; According to ISO 5211/NAMUR; Operating pressure range Max. 8bar; Diameter 115mm; Flange ISO5211 F07/F10; Female square 22mm; Torque at 5,5bar 60,8Nm
    Add to Cart
