ball valve with pneumatic actuator BA036-10-D0-03

Price.

505,90 €
Ball valve with pneumatic actuator Series BA036-D0 Store
  1. Products
  2. Armatures
  3. Ball valves - automatically operated
  4. Other materiales - A03
  5. Ball valve with pneumatic actuator Series BA036-D0
  6. BA036-10-D0-03

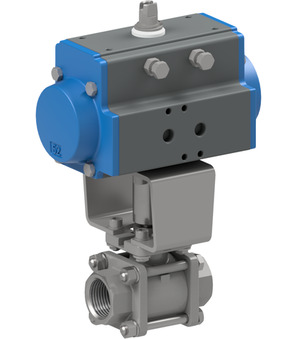

ball valve with pneumatic actuator BA036-10-D0-03
ball valve with pneumatic actuator BA036-10-D0-02
ball valve with pneumatic actuator BA036-10-D0-02
505,90 €
505,90 €
ball valve with pneumatic actuator BA036-10-D0-04
ball valve with pneumatic actuator BA036-10-D0-04
505,90 €
505,90 €

ball valve with pneumatic actuator BA036-10-D0-03

ball valve with pneumatic actuator series BA036-D0; for steam; female thread; body, ball AISI 316; seals PTFE-reinforced/FKM; double acting actuator; control pressure 5,5...8bar; medium temperature -20...+198°C; pressure range steam 0...15bar; RP 1"; nominal diameter 25mm; length 92mm; V-ball 60°; actuator PAD052

Intrastat No.: 84818081
Country of origin: Italy
Short Itemnumber:BA03610D003
https://www.stasto.hu/web/image/product.template/223486/image_1920?unique=1ec24ae

ball valve with pneumatic actuator series BA036-D0; for steam; female thread; body, ball AISI 316; seals PTFE-reinforced/FKM; double acting actuator; control pressure 5,5...8bar; medium temperature -20...+198°C; pressure range steam 0...15bar; RP 1"; nominal diameter 25mm; length 92mm; V-ball 60°; actuator PAD052

505,90 € 505.9 EUR 505,90 €

ár kérésre

  • Female thread
  • DN
  • Length
  • V-ball
  • Actuator

This combination does not exist.

Availability:
Contact Us
dimension
Female thread RP 1"
DN 25 mm
Length 92 mm
V-ball 60°
characteristics
Actuator PAD052
