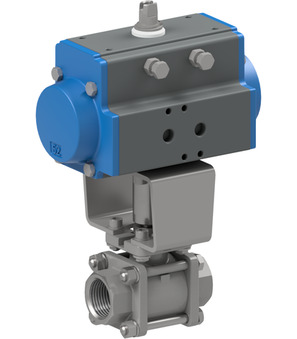

Ball valve with pneumatic actuator BA036-10-S0-A

Ball valve with pneumatic actuator BA036-10-S0-A

Ball valve with pneumatic actuator Series BA036-S0-A; For steam; ATEX II 2 G/D; Female thread; Body, Ball 1.4401; Seals PTFE-reinforced/FKM; Single acting actuator ATEX II 2 G/D c T6; Control pressure 5,5...8bar; Pressure range Steam 0...14bar; Medium temperature -20...+198°C; RP 1"; Nominal diameter 25mm; Length 92mm; Actuator PAS0635

Intrastat No.: 84818081
Country of origin: Italy
Weight: 3.51 Kg
Short Itemnumber: BA03610S0A
https://www.stasto.hu/web/image/product.template/147466/image_1920?unique=07bf1b6

ball valve with pneumatic actuator series BA036-S0-A; for steam; ATEX II 2 G/D; female thread; body, ball AISI 316; seals PTFE-reinforced/FKM; single acting actuator ATEX II 2 G/D c T6; control pressure 5,5...8bar; pressure range steam 0...14bar; medium temperature -20...+198°C; RP 1"; nominal diameter 25mm; length 92mm; actuator PAS0635

999.999,00 € 999999.0 EUR 999.999,00 €

On request

  • Female thread
  • DN
  • Length
  • Design
  • Actuator

This combination does not exist.

Availability:
See availability
Contact Us

Technical specifications

Pressure range Steam 0...14bar
Female thread RP 1"
DN 25 mm
Length 92 mm
All specifications (5)
Pressure range Steam 0...14bar
Female thread RP 1"
DN 25 mm
Length 92 mm
Design ATEX
Ball valve made of stainless steel BA036-10-L-A
BA036-10-L-A x 1.0 Pcs
Ball valve made of stainless steel BA036-10-L-A
Ball valve made of stainless steel Series BA036; For steam; ATEX II 2 G/D; Full bore; Three-parts type; Female thread; Body, Ball 1.4401; Seals PTFE-reinforced/FKM; Pressure range Steam 0...14bar; Medium temperature -20...198°C; RP 1"; Nominal diameter 25mm; Length 92mm
Pneumatic actuator PAS0635
PAS0635 x 1.0 Pcs
Pneumatic actuator PAS0635
Pneumatic actuator Series PAS; ATEX II 2 G/D; Single acting; Rotation angle 90°; According to ISO 5211/NAMUR; Operating pressure range Max. 8bar; Diameter 63mm; Flange ISO5211 F05/F07; Female square 14mm; Torque at 5,5bar 10,6Nm
RI3033 x 1.0 Pcs
RI3033
Mounting bracket; F05/F03-F04; Bolt 14-8
