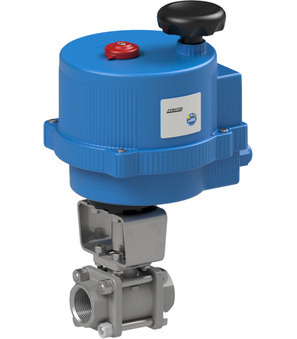

Ball valve with electrical actuator BA036-112-0L

Ball valve with electrical actuator BA036-112-0L

Ball valve with electrical actuator Series BA036; For steam; Three-parts type; Female thread; Body, Ball 1.4401; Seals PTFE-reinforced/FKM; Pressure range Steam 0...15bar; Medium temperature -20...+198°C; RP 11/2"; DN 40mm; Length 116mm; Operating time 9s; Voltage 24VAC/DC

Intrastat No.: 84818081
Country of origin: Italy
Weight: 5.77 Kg
Short Itemnumber: BA0361120L
https://www.stasto.hu/web/image/product.template/151213/image_1920?unique=62ac847

ball valve with electrical actuator series BA036; for steam; three-parts type; female thread; body, ball AISI 316; seals PTFE-reinforced/FKM; pressure range steam 0...15bar; medium temperature -20...+198°C; RP 11/2"; DN 40mm; length 116mm; operating time 9s; voltage 24VAC/DC

953,60 € 953.6 EUR 953,60 €

ár kérésre

excl. tax
  • Female thread
  • DN
  • Length
  • Voltage
  • Pressure range
  • Actuator
  • Operating time

This combination does not exist.

Availability:
See availability
Contact Us

Technical specifications

Pressure range 0...15 bar
Female thread RP 1 1/2"
DN 40 mm
Length 116 mm
All specifications (6)
Pressure range 0...15 bar
Female thread RP 1 1/2"
DN 40 mm
Length 116 mm
Operating time 9 s
Voltage 24VAC/DC
Ball valve made of stainless steel 710060-11/2"
710060-11/2" x 1.0 Pcs
Ball valve made of stainless steel 710060-11/2"
Ball valve made of stainless steel Series 710060; For steam; Full bore; Three-parts type; Female thread; Body, Ball 1.4401; Seals PTFE-reinforced/FKM; Pressure range Steam 0...15bar; Medium temperature -20...+198°C; RP 11/2"; Nominal diameter 40mm; Length 116mm
Electrical actuator VB060-L
VB060-L x 1.0 Pcs
Electrical actuator VB060-L
Electrical actuator Series VB; Suitable for Valves with 90° operation; For a maximum of 100 operations a day; Limit switch-off is wired; 2 potential-free contacts for end position feedback; Incl. manual emergency override; Torque 60Nm; Operating time 9s; Flange ISO5211 F05/F07-Stern 14 mm; Voltage 24VAC/DC; Protection class IP67
RI3031 x 1.0 Pcs
RI3031
Mounting bracket; F07/F05-F05; Bolt 14-10
