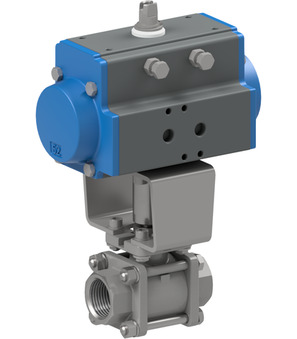

Ball valve with pneumatic actuator BA036-112-T0

Ball valve with pneumatic actuator BA036-112-T0

Ball valve with pneumatic actuator; For steam; Female thread; Body, Ball 1.4401; Seals PTFE-reinforced/FKM; Single acting actuator; Control pressure 5,5...8bar; Pressure range Steam 0...14bar; Medium temperature -20...+198°C; RP 11/2"; Nominal diameter 40mm; Length 116mm; Actuator PAS0855; Safety position Open

Intrastat No.: 84818081
Country of origin: Italy
Weight: 7.38 Kg
Short Itemnumber: BA036112T0
https://www.stasto.hu/web/image/product.template/217953/image_1920?unique=406672f

ball valve with pneumatic actuator; for steam; female thread; body, ball AISI 316; seals PTFE-reinforced/FKM; single acting actuator; control pressure 5,5...8bar; pressure range steam 0...14bar; medium temperature -20...+198°C; RP 11/2"; nominal diameter 40mm; length 116mm; actuator PAS0855; safety position open

729,80 € 729.8 EUR 729,80 €

ár kérésre

excl. tax
  • Connection
  • Valve interface Namur
  • Female thread
  • DN
  • Length
  • Connector size
  • Design
  • Voltage
  • Coil
  • Actuator
  • Actuator 2
  • Max. inlet pressure
  • Filter element
  • Flow rate at 6.3bar/Δp=1bar

This combination does not exist.

Availability:
See availability
Contact Us

Technical specifications

Pressure range Steam 0...14bar
Documents
Data sheets, drawings and CAD files
Pressure range Steam 0...14bar

BA036-112-T0

Documents

1 Documents 18 Languages

Czech / Čeština
ZIP

Data Sheets

1
Danish / Dansk
ZIP

Data Sheets

1
German / Deutsch
ZIP

Data Sheets

1
Greek / Ελληνικά
ZIP

Data Sheets

1
English
ZIP

Data Sheets

1
Spanish / Español
ZIP

Data Sheets

1
Finnish / Suomi
ZIP

Data Sheets

1
French / Français
ZIP

Data Sheets

1
Croatian / hrvatski jezik
ZIP

Data Sheets

1
Hungarian / Magyar
ZIP

Data Sheets

1
Italian / Italiano
ZIP

Data Sheets

1
Norwegian Bokmål / Norsk bokmål
ZIP

Data Sheets

1
Dutch / Nederlands
ZIP

Data Sheets

1
Polish / Język polski
ZIP

Data Sheets

1
Romanian / română
ZIP

Data Sheets

1
Slovenian / slovenščina
ZIP

Data Sheets

1
Serbian (Latin) / srpski
ZIP

Data Sheets

1
Swedish / Svenska
ZIP

Data Sheets

1
Ball valve made of stainless steel BA036-112-L
BA036-112-L x 1.0 Pcs
Ball valve made of stainless steel BA036-112-L
Ball valve made of stainless steel Series BA036; For steam; Full bore; Three-parts type; Female thread; Body, Ball 1.4401; Seals PTFE-reinforced/FKM; Pressure range Steam 0...15bar; Medium temperature -20...+198°C; RP 11/2"; Nominal diameter 40mm; Length 116mm
PAS0855-B x 1.0 Pcs
PAS0855-B
Pneumatic actuator Series PAS; ATEX II 2 G/D; Single acting; Rotation angle 90°; According to ISO 5211/NAMUR; Operating pressure range Max. 8bar; Pinion turned by 90°; Diameter 85mm; Flange ISO5211 F05/F07; Female square 17mm; Torque at 5,5bar 28,7Nm
RI3034 x 1.0 Pcs
RI3034
Mounting bracket; F07/F05-F05; Bolt 17-10
