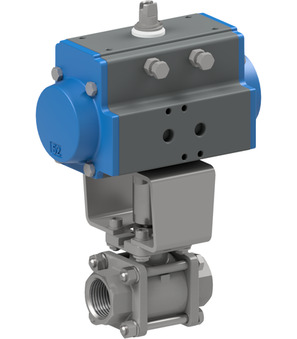

BA036-114-S0-01

BA036-114-S0-01

Ball valve with pneumatic actuator; Female thread; Body, Ball 1.4401; Seals PTFE-reinforced/FKM; Single acting actuator; Control pressure 5,5...8bar; Medium temperature -20...+198°C; RP 11/4"; Nominal diameter 32mm; Pressure range 0-25bar; Length 106mm; Actuator PAS0855; Compensation hole at the inlet; NC

Intrastat No.: 84818081
Country of origin: Italy
Weight: 6.81 Kg
Short Itemnumber: BA036114S001
https://www.stasto.hu/web/image/product.template/136437/image_1920?unique=07bf1b6

ball valve with pneumatic actuator; female thread; body, ball AISI 316; seals PTFE-reinforced/FKM; single acting actuator; control pressure 5,5...8bar; medium temperature -20...+198°C; RP 11/4"; nominal diameter 32mm; pressure range 0-25bar; length 106mm; actuator PAS0855; compensation hole at the inlet; NC

999.999,00 € 999999.0 EUR 999.999,00 €

On request

    This combination does not exist.

    Availability:
    Contact Us

    Share

    No Specifications
    Ball valve made of stainless steel BA036-114-L-01
    BA036-114-L-01 x 1.0
    Ball valve made of stainless steel BA036-114-L-01
    Ball valve made of stainless steel Series BA036; For steam; Full bore; Three-parts type; Female thread; Body, Ball 1.4401; Seals PTFE-reinforced/FKM; Pressure range Steam 0...15bar; Medium temperature -20...+198°C; Compensation hole at the inlet; RP 11/4"; Nominal diameter 32mm; Length 106mm
    Add to Cart
    Pneumatic actuator PAS0855
    PAS0855 x 1.0
    Pneumatic actuator PAS0855
    Pneumatic actuator Series PAS; ATEX II 2 G/D; Single acting; Rotation angle 90°; According to ISO 5211/NAMUR; Operating pressure range Max. 8bar; Diameter 85mm; Flange ISO5211 F05/F07; Female square 17mm; Torque at 5,5bar 28,7Nm
