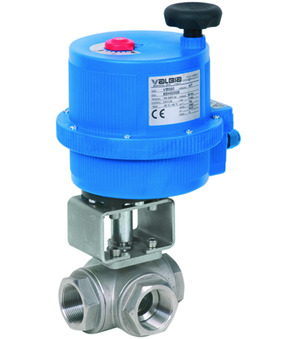

Ball valve with electrical actuator BA037-10-0H

Ball valve with electrical actuator BA037-10-0H

Ball valve with electrical actuator Series BA037, BA038; 3-way-type; Sealing on three ports; Body, Ball 1.4401; Seals PTFE; Reduced bore; Medium temperature -20...+160°C; G 1"; DN 20mm; Pressure range 0...64bar; Length 102,4mm; Operating time 8s; Voltage 100-240VAC; Ball L

Intrastat No.: 84818081
Country of origin: Italy
Weight: 4.34 Kg
Short Itemnumber: BA037100H
https://www.stasto.hu/web/image/product.template/152642/image_1920?unique=b82de6b

ball valve with electrical actuator series BA037, BA038; 3-way-type; sealing on three ports; body, ball AISI 316; seals PTFE; reduced bore; medium temperature -20...+160°C; G 1"; DN 20mm; pressure range 0...64bar; length 102,4mm; operating time 8s; voltage 100-240VAC; ball L

1.045,70 € 1045.7 EUR 1.045,70 €

ár kérésre

excl. tax
  • Female thread
  • DN
  • Length
  • Ball
  • Voltage
  • Pressure range
  • Actuator
  • Operating time

This combination does not exist.

Availability:
See availability
Contact Us

Technical specifications

Pressure range 0...64 bar
Female thread G 1"
DN 20 mm
Length 102,4 mm
All specifications (7)
Documents
Data sheets, drawings and CAD files
Pressure range 0...64 bar
Female thread G 1"
DN 20 mm
Length 102,4 mm
Operating time 8 s
Voltage 100-240VAC
Ball L

BA037-10-0H

Documents

1 Documents

Language-independent
ZIP

CAD / 3D

1
Ball valve made of stainless steel BA037-10-L
BA037-10-L x 1.0 Pcs
Ball valve made of stainless steel BA037-10-L
Ball valve made of stainless steel Series BA037, BA038; 3-way-type; Female thread; Reduced bore; Body 1.4408; Ball 1.4401; Seals PTFE; Sealing on three ports; Medium temperature -20...+160°C;; G 1"; Nominal diameter 20mm; Pressure range 0...64bar; Length 102,4mm; Ball L
Electrical actuator VB030-H
VB030-H x 1.0 Pcs
Electrical actuator VB030-H
Electrical actuator Series VB; Suitable for Valves with 90° operation; For a maximum of 100 operations a day; Limit switch-off is wired; 2 potential-free contacts for end position feedback; Incl. manual emergency override; Torque 30Nm; Operating time 8s; Flange ISO5211 F03/F05-Stern 11 mm; Voltage 100-240VAC; Protection class IP67
RI4034 x 1.0 Pcs
RI4034
Mounting bracket; F07/F05-F05, Bolt 11-11
