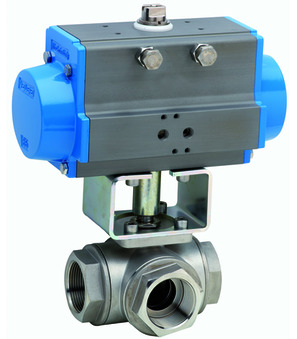

Ball valve with pneumatic actuator BA037-10-D0

Ball valve with pneumatic actuator BA037-10-D0

Ball valve with pneumatic actuator Series BA037, BA038; 3-way-type; Sealing on three ports; Body, Ball 1.4401; Seals PTFE; Double acting actuator; Reduced bore; Control pressure 5,5...8bar; Medium temperature -20...+160°C; Pressure range 0...64bar; G 1"; Nominal diameter 20mm; Length 102,4mm; Actuator PAD063; Ball L

Intrastat No.: 84818081
Country of origin: China
Weight: 3.96 Kg
Short Itemnumber: BA03710D0
https://www.stasto.hu/web/image/product.template/152687/image_1920?unique=b82de6b

ball valve with pneumatic actuator series BA037, BA038; 3-way-type; sealing on three ports; body, ball AISI 316; seals PTFE; double acting actuator; reduced bore; control pressure 5,5...8bar; medium temperature -20...+160°C; pressure range 0...64bar; G 1"; nominal diameter 20mm; length 102,4mm; actuator PAD063; ball L

713,70 € 713.7 EUR 713,70 €

ár kérésre

excl. tax
  • Female thread
  • DN
  • Length
  • Ball
  • Actuator

This combination does not exist.

Availability:
See availability
Contact Us

Technical specifications

Pressure range 0...64bar
Female thread G 1"
DN 20 mm
Length 102,4 mm
All specifications (5)
Documents
Data sheets, drawings and CAD files
Pressure range 0...64bar
Female thread G 1"
DN 20 mm
Length 102,4 mm
Ball L

BA037-10-D0

Documents

1 Documents 18 Languages

Czech / Čeština
ZIP

Data Sheets

1
Danish / Dansk
ZIP

Data Sheets

1
German / Deutsch
ZIP

Data Sheets

1
Greek / Ελληνικά
ZIP

Data Sheets

1
English
ZIP

Data Sheets

1
Spanish / Español
ZIP

Data Sheets

1
Finnish / Suomi
ZIP

Data Sheets

1
French / Français
ZIP

Data Sheets

1
Croatian / hrvatski jezik
ZIP

Data Sheets

1
Hungarian / Magyar
ZIP

Data Sheets

1
Italian / Italiano
ZIP

Data Sheets

1
Norwegian Bokmål / Norsk bokmål
ZIP

Data Sheets

1
Dutch / Nederlands
ZIP

Data Sheets

1
Polish / Język polski
ZIP

Data Sheets

1
Romanian / română
ZIP

Data Sheets

1
Slovenian / slovenščina
ZIP

Data Sheets

1
Serbian (Latin) / srpski
ZIP

Data Sheets

1
Swedish / Svenska
ZIP

Data Sheets

1
Ball valve made of stainless steel BA037-10-L
BA037-10-L x 1.0 Pcs
Ball valve made of stainless steel BA037-10-L
Ball valve made of stainless steel Series BA037, BA038; 3-way-type; Female thread; Reduced bore; Body 1.4408; Ball 1.4401; Seals PTFE; Sealing on three ports; Medium temperature -20...+160°C;; G 1"; Nominal diameter 20mm; Pressure range 0...64bar; Length 102,4mm; Ball L
Pneumatic actuator PAD063
PAD063 x 1.0 Pcs
Pneumatic actuator PAD063
Pneumatic actuator Series PAD; ATEX II 2 G/D; Double acting; Rotation angle 90°; According to ISO 5211/NAMUR; Operating pressure range Max. 8bar; Diameter 63mm; Flange ISO5211 F05/F07; Female square 14mm; Torque at 5,5bar 36Nm
RI3762 x 1.0 Pcs
RI3762
Mounting kit for PKH F05/F07-F05 stud 14-11
