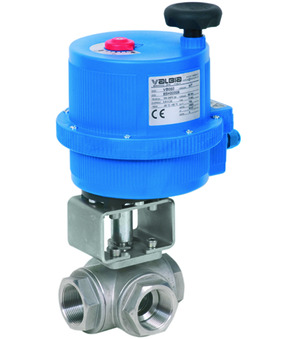

Ball valve with electrical actuator Series BA037, BA038 Store

Ball valve with electrical actuator BA037-12-0H

Name: Ball valve with electrical actuator BA037-12-0H
Brand: STASTO
SKU: BA037-12-0H
Price: 670.1 EUR
Availability: InStock

Ball valve with electrical actuator Series BA037, BA038; 3-way-type; Sealing on three ports; Body, Ball 1.4401; Seals PTFE; Reduced bore; Medium temperature -20...+160°C; G 1/2"; DN 12,5mm; Pressure range 0...64bar; Length 75,7mm; Operating time 10s; Voltage 100-240VAC; Ball L

Intrastat No.: 84818081
Country of origin: Italy
Weight: 2.49 Kg
Short Itemnumber:BA037120H

ball valve with electrical actuator series BA037, BA038; 3-way-type; sealing on three ports; body, ball AISI 316; seals PTFE; reduced bore; medium temperature -20...+160°C; G 1/2"; DN 12,5mm; pressure range 0...64bar; length 75,7mm; operating time 10s; voltage 100-240VAC; ball L

670,10 € 670.1 EUR 670,10 €

Female thread
- G 1/2"
DN
- 12,5 mm
Length
- 75,7 mm
Ball
- L
Voltage
- 100-240VAC
Pressure range
- 0...64 bar
Actuator
- VB015H
Operating time
- 10 s

This combination does not exist.

Availability:

In den Warenkorb

dimension
Female thread	G 1/2"
DN	12,5 mm
Length	75,7 mm
Designs
Ball	L
Electrical key figures
Voltage	100-240VAC
pressure
Pressure range	0...64 bar
characteristics
Actuator	VB015H
Operating time	10 s

Data sheets, Instructions, 3D-files and Certificates...

In your language

ZIP

CAD / 3D

CADSTEP_BA037120H.stp

Download

BA037-12-L x 1.0

Ball valve made of stainless steel BA037-12-L

Ball valve made of stainless steel Series BA037, BA038; 3-way-type; Female thread; Reduced bore; Body 1.4408; Ball 1.4401; Seals PTFE; Sealing on three ports; Medium temperature -20...+160°C;; G 1/2"; Nominal diameter 12,5mm; Pressure range 0...64bar; Length 75,7mm; Ball L

Add to Cart

VB015-H x 1.0

Electrical actuator VB015-H

Electrical actuator Series VB; Suitable for Valves with 90° operation; For a maximum of 100 operations a day; Limit switch-off is wired; 2 potential-free contacts for end position feedback; Incl. manual emergency override; Torque 15Nm; Operating time 10s; Flange ISO5211 F03/F05-Stern 11 mm; Voltage 100-240VAC; Protection class IP65

Add to Cart

RI3760 x 1.0
