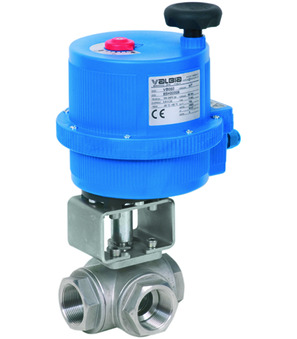

Ball valve with electrical actuator BA037-34-0L

Ball valve with electrical actuator BA037-34-0L

Ball valve with electrical actuator Series BA037, BA038; 3-way-type; Sealing on three ports; Body, Ball 1.4401; Seals PTFE; Reduced bore; Medium temperature -20...+160°C; G 3/4"; DN 16mm; Pressure range 0...64bar; Length 86,6mm; Operating time 8s; Voltage 24VAC/DC; Ball L

Intrastat No.: 84818081
Country of origin: Italy
Weight: 3.91 Kg
Short Itemnumber: BA037340L
https://www.stasto.hu/web/image/product.template/152651/image_1920?unique=b82de6b

ball valve with electrical actuator series BA037, BA038; 3-way-type; sealing on three ports; body, ball AISI 316; seals PTFE; reduced bore; medium temperature -20...+160°C; G 3/4"; DN 16mm; pressure range 0...64bar; length 86,6mm; operating time 8s; voltage 24VAC/DC; ball L

897,80 € 897.8 EUR 897,80 €

ár kérésre

excl. tax
  • Female thread
  • DN
  • Length
  • Ball
  • Voltage
  • Pressure range
  • Actuator
  • Operating time

This combination does not exist.

Availability:
See availability
Contact Us

Technical specifications

Pressure range 0...64 bar
Female thread G 3/4"
DN 16 mm
Length 86,6 mm
All specifications (7)
Pressure range 0...64 bar
Female thread G 3/4"
DN 16 mm
Length 86,6 mm
Operating time 8 s
Voltage 24VAC/DC
Ball L
Ball valve made of stainless steel BA037-34-L
BA037-34-L x 1.0 Pcs
Ball valve made of stainless steel BA037-34-L
Ball valve made of stainless steel Series BA037, BA038; 3-way-type; Female thread; Reduced bore; Body 1.4408; Ball 1.4401; Seals PTFE; Sealing on three ports; Medium temperature -20...+160°C;; G 3/4"; Nominal diameter 16mm; Pressure range 0...64bar; Length 86mm; Ball L
Electrical actuator VB030-L
VB030-L x 1.0 Pcs
Electrical actuator VB030-L
Electrical actuator Series VB; Suitable for Valves with 90° operation; For a maximum of 100 operations a day; Limit switch-off is wired; 2 potential-free contacts for end position feedback; Incl. manual emergency override; Torque 30Nm; Operating time 8s; Flange ISO5211 F03/F05-Stern 11 mm; Voltage 24VAC/DC; Protection class IP67
RI3761 x 1.0 Pcs
RI3761
Mounting bracket; F07/F05-F05; Bolt 11-11
