ball valve with pneumatic actuator BA038-10-3S0

Price.

766,40 €
Ball valve with pneumatic actuator Series BA037, BA038 Store
  1. Products
  2. Armatures
  3. Ball valves - automatically operated
  4. Other materiales - A03
  5. Ball valve with pneumatic actuator Series BA037, BA038
  6. BA038-10-3S0

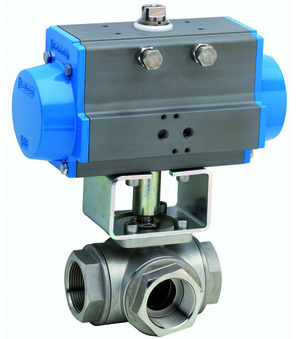

ball valve with pneumatic actuator BA038-10-3S0
ball valve with pneumatic actuator BA038-10-2S0-01
ball valve with pneumatic actuator BA038-10-2S0-01
768,70 €
768,70 €
Ball valve with pneumatic actuator BA038-10-S0
Ball valve with pneumatic actuator BA038-10-S0
766,40 €
766,40 €

ball valve with pneumatic actuator BA038-10-3S0

ball valve with pneumatic actuator series BA037, BA038; 3-way-type; reduced bore; flow path 03; sealing on three ports; body, ball AISI 316; seals PTFE; single acting actuator; control pressure 5,5...8bar; medium temperature -20...+160°C; pressure range 0...64bar; G 1"; nominal diameter 20mm; length 102,4mm; actuator PAS0855; ball T

Intrastat No.: 84818081
Country of origin: Italy
Weight: 5.99 Kg
Short Itemnumber:BA038103S0
https://www.stasto.hu/web/image/product.template/233321/image_1920?unique=0035f43

ball valve with pneumatic actuator series BA037, BA038; 3-way-type; reduced bore; flow path 03; sealing on three ports; body, ball AISI 316; seals PTFE; single acting actuator; control pressure 5,5...8bar; medium temperature -20...+160°C; pressure range 0...64bar; G 1"; nominal diameter 20mm; length 102,4mm; actuator PAS0855; ball T

766,40 € 766.4 EUR 766,40 €

ár kérésre

  • Female thread
  • DN
  • Length
  • Ball
  • Actuator

This combination does not exist.

Availability:
Contact Us
dimension
Female thread G 1"
DN 20 mm
Length 102,4 mm
Designs
Ball T
characteristics
Actuator PAS0855
Ball valve made of stainless steel BA038-10-L
BA038-10-L x 1.0
Ball valve made of stainless steel BA038-10-L
Ball valve made of stainless steel Series BA037, BA038; 3-way-type; Female thread; Reduced bore; Body 1.4408; Ball 1.4401; Seals PTFE; Sealing on three ports; Medium temperature -20...+160°C;; G 1"; Nominal diameter 20mm; Pressure range 0...64bar; Length 102,4mm; Ball T
Add to Cart
Pneumatic actuator PAS0855
PAS0855 x 1.0
Pneumatic actuator PAS0855
Pneumatic actuator Series PAS; ATEX II 2 G/D; Single acting; Rotation angle 90°; According to ISO 5211/NAMUR; Operating pressure range Max. 8bar; Diameter 85mm; Flange ISO5211 F05/F07; Female square 17mm; Torque at 5,5bar 28,7Nm
Add to Cart
