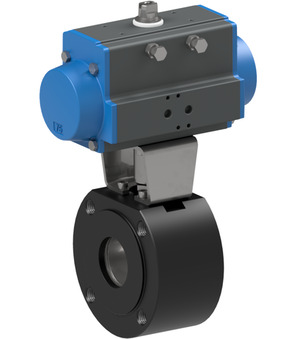

BA043-25-S0-A3M

BA043-25-S0-A3M

Flanged ball valve with pneumatic actuator; Flange PN16; Body Steel; Ball 1.4301; Seals PTFE/FKM; Single acting actuator; Control pressure 5,5...8bar; Medium temperature -10...+160°C; Pressure range 0...16bar; ATEX-design; Nominal diameter 25mm; Length 46mm; Actuator PAS0635; Incl. Inspection certificate EN-10204-3.1; For material, pressure, function and tightness; Incl. Technical valve passport RU According to TR CU 032/2013; Incl. TR CU 032/2013 (Incl. Strength calculation), TR CU 010/2011; Incl. EAC-Certificate

Intrastat No.: 84818081
Country of origin: Italy
Weight: 4.95 Kg
Short Itemnumber: BA04325S0A3M
https://www.stasto.hu/web/image/product.template/154881/image_1920?unique=f96ddcc

flanged ball valve with pneumatic actuator; flange PN16; body steel; ball AISI 304; seals PTFE/FKM; single acting actuator; control pressure 5,5...8bar; medium temperature -10...+160°C; pressure range 0...16bar; ATEX-design; nominal diameter 25mm; length 46mm; actuator PAS0635; incl. inspection certificate EN-10204-3.1; for material, pressure, function and tightness; incl. technical valve passport RU according to TR CU 032/2013; incl. TR CU 032/2013 (incl. strength calculation), TR CU 010/2011; incl. EAC-certificate

999.999,00 € 999999.0 EUR 999.999,00 €

On request

  • Design

This combination does not exist.

Availability:
Contact Us

Share

Design ATEX
Flanged ball valve BA043-25-L-A3M
BA043-25-L-A3M x 1.0
Flanged ball valve BA043-25-L-A3M
Flanged ball valve Series BA043-L-A3M; ATEX II 2 G/D; Flange PN16, Full bore; Body Steel; Ball 1.4301; Seals PTFE/FKM; Pressure range 0...16bar; Medium temperature -20...+160°C; Incl. Inspection certificate EN-10204-3.1; For material, pressure, function and tightness; Incl. Technical valve passport RU According to TR CU 032/2013; Incl. TR CU 032/2013 (Incl. Strength calculation), TR CU 010/2011; Incl. EAC-Certificate; Nominal diameter 25mm; Length 46mm
Add to Cart
PAS0635-3M
PAS0635-3M x 1.0
PAS0635-3M
Pneumatic actuator Series PAS; ATEX II 2 G/D; Single acting; Rotation angle 90°; According to ISO 5211/NAMUR; Operating pressure range Max. 8bar; Incl. Technical valve passport RU According to TR CU 032/2013; Incl. TR CU 032/2013 (Incl. Strength calculation), TR CU 010/2011; Incl. EAC-Certificate; Diameter 63mm; Flange ISO5211 F05/F07; Female square 14mm; Torque at 5,5bar 10,6Nm
