Flanged ball valve with pneumatic actuator BA043-32-D0

Price.

510,17 €
Flanged ball valve with pneumatic actuator Series BA043 Store
  1. Products
  2. Armatures
  3. Ball valves - automatically operated
  4. Other materiales - A03
  5. Flanged ball valve with pneumatic actuator Series BA043
  6. BA043-32-D0

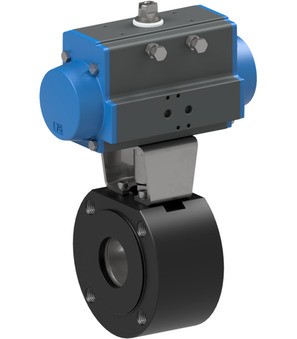

Flanged ball valve with pneumatic actuator BA043-32-D0
Flanged ball valve with pneumatic actuator BA043-25-D0
Flanged ball valve with pneumatic actuator BA043-25-D0
474,53 €
474,53 €
Flanged ball valve with pneumatic actuator BA043-40-D0
Flanged ball valve with pneumatic actuator BA043-40-D0
584,47 €
584,47 €

Flanged ball valve with pneumatic actuator BA043-32-D0

Flanged ball valve with pneumatic actuator Series BA043; Flange PN16; Body Steel; Ball 1.4301; Seals PTFE/FKM; Double acting actuator; Control pressure 5,5...8bar; Medium temperature -20...+160°C; Pressure range 0...16bar; Nominal diameter 32mm; Length 54mm; Actuator PAD052

Intrastat No.: 84818081
Country of origin: Italy
Weight: 5.61 Kg
Short Itemnumber:BA04332D0
https://www.stasto.hu/web/image/product.template/158730/image_1920?unique=07bf1b6

flanged ball valve with pneumatic actuator series BA043; flange PN16; body steel; ball AISI 304; seals PTFE/FKM; double acting actuator; control pressure 5,5...8bar; medium temperature -20...+160°C; pressure range 0...16bar; nominal diameter 32mm; length 54mm; actuator PAD052

510,17 € 510.17 EUR 510,17 €

ár kérésre

  • Valve interface Namur
  • DN
  • Length
  • Connector size
  • Design
  • Voltage
  • Coil
  • Actuator

This combination does not exist.

Availability:
Contact Us
dimension
DN 32 mm
Length 54 mm
characteristics
Actuator PAD052

Data sheets, Instructions, 3D-files and Certificates...

In your language
ZIP
Data Sheets
1
Data sheet_Flanged ball valve with pneumatic actuator Series BA043_EN.pdf
Download
Declarations of Conformity
1
Declaration of conformity_Flanged ball valve with pneumatic actuator Series BA043_EN.pdf
Download
CAD / 3D
1
CADSTEP_BA04332D0.stp
Download

ZIP
Datové listy
1
Datový list_kulový kohout - přírubový, s otočným pneumatickým pohonem série BA043_CS.pdf
Download
Prohlášení o shodě
1
Prohlášení o shodě_kulový kohout - přírubový, s otočným pneumatickým pohonem série BA043_CS.pdf
Download

ZIP
Datenblätter
1
Datenblatt_Flanschkugelhahn mit Druckluftdrehantrieb Serie BA043_DE.pdf
Download
Konformitätserklärungen
1
Konformitätserklärung_Flanschkugelhahn mit Druckluftdrehantrieb Serie BA043_DE.pdf
Download

ZIP
Adatlapok
1
Adatlap_pneumatikus forgatóhengerrel működtetett karimás gömbcsap sorozat BA043_HU.pdf
Download
Megfelelőségi nyilatkozatok
1
Megfelelőségi nyilatkozat_pneumatikus forgatóhengerrel működtetett karimás gömbcsap sorozat BA043_HU.pdf
Download

ZIP
Karty katalogowe
1
Arkusz danych_zawór kulowy kołnierzowy z napędem pneumatycznym Seria BA043_PL.pdf
Download
Deklaracje zgodności
1
Deklaracja zgodności_zawór kulowy kołnierzowy z napędem pneumatycznym Seria BA043_PL.pdf
Download

ZIP
Podatkovni listi
1
Podatkovni list_Prirobnična krogelna pipa s pnevmatskim rotacijskim pogonom serija BA043_SL.pdf
Download
Izjave o skladnosti
1
Izjava o skladnosti_Prirobnična krogelna pipa s pnevmatskim rotacijskim pogonom serija BA043_SL.pdf
Download

ZIP
Data Sheets
1
Tehnički list_kuglasti ventil sa prirubnicom i pneumatskim aktuatorom serije BA043_SRLATIN.pdf
Download
Declarations of Conformity
1
Deklaracija o usklađenosti_kuglasti ventil sa prirubnicom i pneumatskim aktuatorom serije BA043_SRLATIN.pdf
Download
Flanged ball valve BA043-32-L
BA043-32-L x 1.0
Flanged ball valve BA043-32-L
Flanged ball valve Series BA043-L; Flange PN16, Full bore; Body Steel; Ball 1.4301; Seals PTFE/FKM; Pressure range 0...16bar; Medium temperature -20...+160°C; Nominal diameter 32mm; Length 54mm
Add to Cart
Pneumatic actuator PAD052
PAD052 x 1.0
Pneumatic actuator PAD052
Pneumatic actuator Series PAD; ATEX II 2 G/D; Double acting; Rotation angle 90°; According to ISO 5211/NAMUR; Operating pressure range Max. 8bar; Diameter 52mm; Flange ISO5211 F03/F05; Female square 11mm; Torque at 5,5bar 20Nm
Add to Cart
