BA043-80-0H-0

BA043-80-0H-0

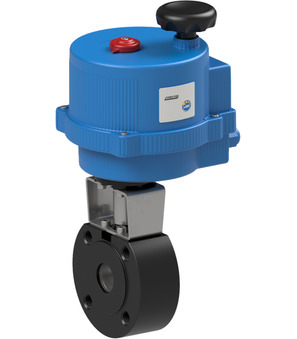

Flanged ball valve with electrical actuator; Flange PN16; Body Steel; Ball 1.4301; Seals PTFE/FKM; Medium temperature -10...+60°C; DN 80mm; Pressure range 0-10bar; Length 122mm; Operating time 27s; Voltage 100-240VAC; Free of oil and grease for oxygen

Intrastat No.: 84818081
Country of origin: Italy Made in Europe
Weight: 26.17 Kg
Short Itemnumber: BA043800H0
https://www.stasto.hu/web/image/product.template/147115/image_1920?unique=f96ddcc

flanged ball valve with electrical actuator; flange PN16; body steel; ball AISI 304; seals PTFE/FKM; medium temperature -10...+60°C; DN 80mm; pressure range 0-10bar; length 122mm; operating time 27s; voltage 100-240VAC; free of oil and grease for oxygen

999.999,00 € 999999.0 EUR 999.999,00 €

On request

  • Brand

This combination does not exist.

Availability:
See availability
Contact Us

Technical specifications

Pressure range 0-10bar
Brand STASTO
Pressure range 0-10bar
Brand STASTO
BA043-80-L-0
BA043-80-L-0 x 1.0 Pcs
BA043-80-L-0
Flanged ball valve; Flange PN16, Full bore; Body Steel; Ball 1.4301; Seals PTFE/FKM; Pressure range 0...16bar; Medium temperature -10...+160°C; Nominal diameter 80mm; Length 122mm, Free of oil and grease for oxygen
Electrical actuator VB190-H
VB190-H x 1.0 Pcs
Electrical actuator VB190-H
Electrical actuator Series VB; Suitable for Valves with 90° operation; For a maximum of 100 operations a day; Limit switch-off is wired; 2 potential-free contacts for end position feedback; Incl. manual emergency override; Torque 190Nm; Operating time 27s; Flange ISO5211 F07/F10-Stern 17 mm; Voltage 100-240VAC; Protection class IP67
RI3003 x 1.0 Pcs
RI3003
Mounting bracket; F07/F07; 17-14
